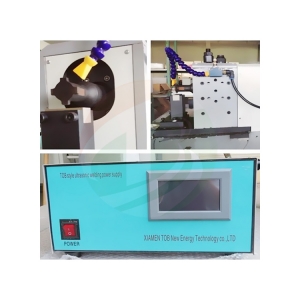

TOB TOB-USW-4500W 电池电极焊接机 (4500W, 10-60 layers)

  • 制造商: TOB
    Model: TOB-USW-4500W
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Type: Ultrasonic spot welding machine

Welding ability:

1, 10-60 sheets 0.09-0.012mm copper foil + 0.1-0.3mm Ni or Nickel-clad copper tab welding.

   Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

2, 10-60 sheets 0.09-0.012mm aluminum foil + 0.1-0.3mm Al tab welding.

   Welding point : 4*6, 4*8, 4*10, 4*12 mm customized

3, 0.2mm Al belt +0.2mm Ni belt or Nickel-clad copper wrapping welding.

   Welding point : 4*6, 4*8, 4*10, 4*12mm customized

4, 2-4 sheets 0.2mm Al tab or 2-4 sheets 0.2mm Ni tab weld.

   Welding point : 4*6, 4*12mm customized

Frequency: 24KHZ

Max output power: 4500W

Control mode: CPU control

Air supply: ≥0.5MPa

Voltage source: 110/ 220V 50HZ/60HZ

Humidity: ≤48%

Temperature: ≤45℃
