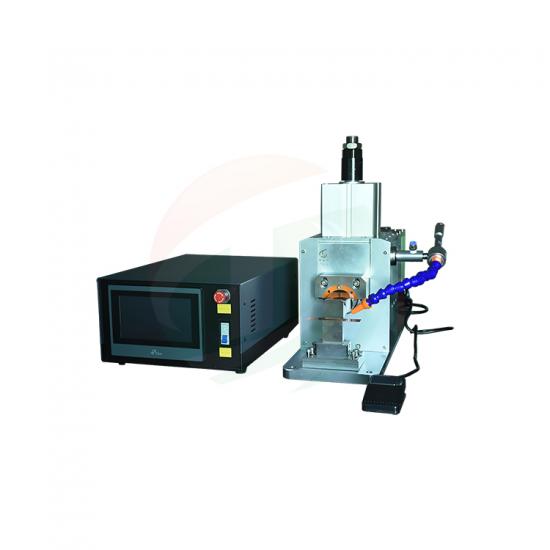

TOB TOB-USW-8000W 超声波电池焊接机 (8000W)

Power: 8000W

Frequency: 20KHZ

Power supply: 220V/ 50Hz

Gas supply: ≥0.5MPa

Control method: CPU

Maximum stroke: 20 mm

Welding time: 0.05～9S

Main components

1. Ceramic sheet: German imported black film

2. Aluminum rod: American Aluminum Corporation

3. Welding head: powder alloy

Detail

Datasheet

Welding ability

①10~120 layer aluminum foil + 0.2-0.6mm pure aluminum tab welding,

welding spot4*6 /4*8 /4*10mm /5*30mm

②10~120 layer copper foil + 0.2-0.6mm nickel or copper nickel platedtab welding,

welding spot4*6 /4*8 /4*10mm /5*30mm

③0.2-0.6mm nickel or nickel-plated coppertab,can weld with 10~90 layers of copper foil,

welding spot4*6 /4*8 /4*10mm

④0.2-0.6mm aluminum tab, can weld with 10~90 layers of aluminum foil,

welding spot4*6、4*8、4*10mm

⑤0.2-0.6mm aluminum tab or nickel tab 2~12 layers welding, welding spot4*6mm

⑥0.2-0.6mm aluminum strip and2.0mm aluminum plate welding
