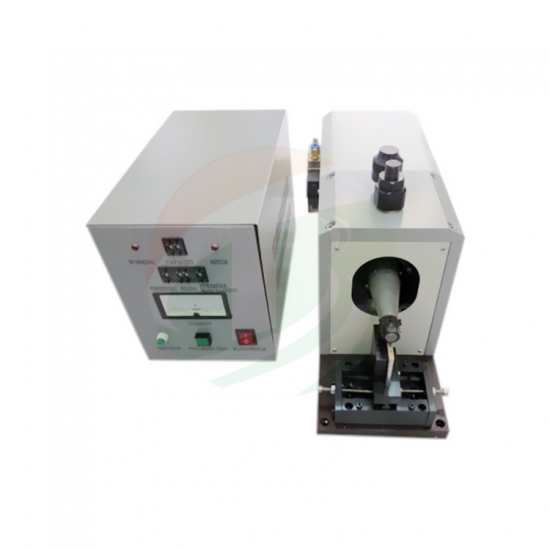

TOB TOB-USW-PC1500 超音焊机 (1500W, 24KHZ)

Source voltage: 110V AC or 240V AC 50/60Hz

Power: 1500W

Type: Ultrasonic spot welding machine

Product dimension: 450*230*160mm

Control box dimension: 330*190*250mm

Package size: 600*420*500mm, About 55kg

Frequency: 24KHZ

Welding head material: W6M5Cr4V2 high-speed steel, with six welding points in one head.

Working stroke: 15mm

Welding time: 0.5-2s

Control mode: CPU Control

Air supply: ≥0.5MPa (≥72.5psi)

Welding ability

1, For copper : 0.15~2+0.15~2mm.

2, For aluminum : 0.2~3+0.2~3mm.

3, For Nickel : 0.1~1.2+0.1~1.2mm.

Main accessories

1, “Welding head”-6pcs, 2 “Connect line”-2pcs, 3”Foot pedal”-1pcs

4, “Power line with customized plug”-1pcs,

5, “Gas-pressure meter”-1pcs
