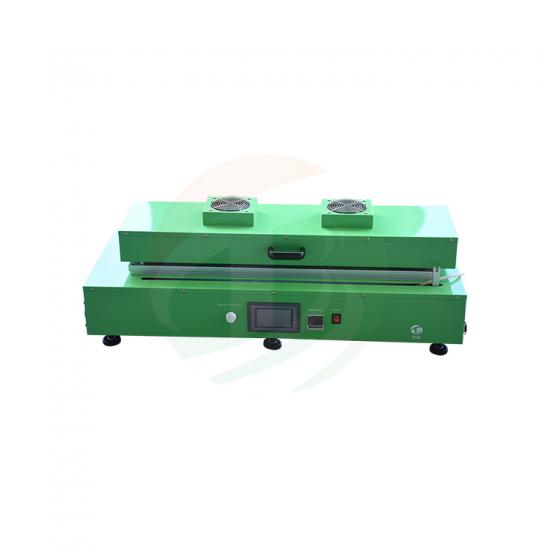

TOB TOB-VFC-800 锂电池电极涂布机 (0~200mm/s)

Coating speed: 0~200mm/s

Max Stroke: The stroke can be adjusted by the stroke switch between 0~800mm

Vacuum plate: With vacuum aluminum plate

Vacuum plate size: L900mm × W200mm × H32mm

Adjustable range of scraper: 0.01~3.5mm

Heating and drying system: Room temperature~200℃, digital display temperature controller, accuracy ± 1℃

power supply: 220V/50Hz

Weight: 70KG

Dimensions: L1000mm × W350mm × H320mm

Standard accessories: Applicator, Crossbar, Collection box
