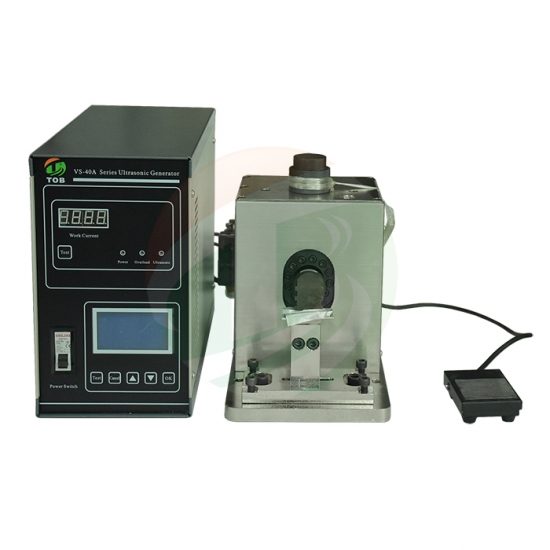

TOB TOB-VS-40A 超声波焊接机 (1200W)

Source voltage: AC220V, 50HZ, can be customized

Power: 1200W

Type: Ultrasonic spot welding machine

Frequency: 40KHZ

Welding time: 0.05-9.99s

Air supply: 0.2-0.8MPa

Welding effect: Single layer of copper foil and Nickel strip or Nickel-Cu strip welding, belt melt, welding firmly

Welding ability

1, Materials : Battery cathode electrode. (single layer copper foil and single piece Nickel/Ni-Cu strip)

2 Copper foil thickness : 8-15um

3 Nickel/Ni-Cu strip thickness : 0.06-0.12mm

4 Welding mode : according to your requirements

5 Welding area : can be customized

Dimension(L*W*H)

Power box: 400*170*300mm

Welding machine: 300*200*270mm
