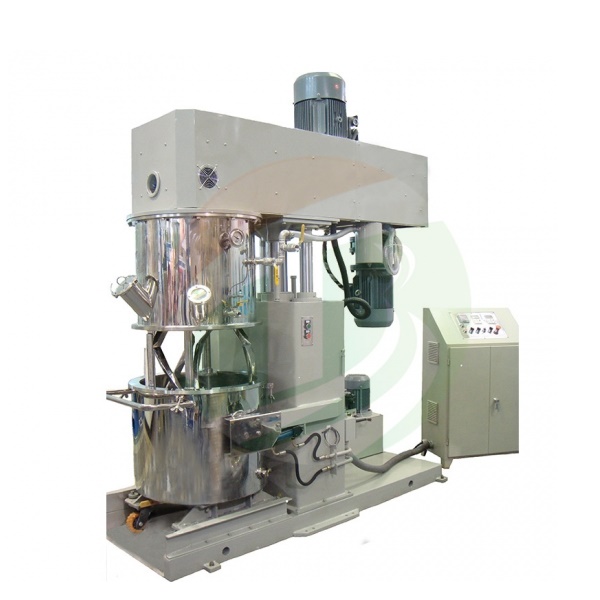

TOB TOB-XFZH100 真空搅拌机 (100L)

Low speed revolution and rotation

Frequency conversion motor power: 11KW

Variable-frequency drive: 11KW

Revolution speed: 0～35rpm

Impeller speed: 0～55rpm

High speed dispersion

Frequency conversion motor power: 15KW

variable-frequency drive: 15KW

Dispersion plate

Diameter : DIN160

Speed : 0～3800rpm

Linear speed : 0～23.5m/s

Mixing barrel

Dimension: Dia.596mm×H.500mm

Capacity

Design capacity : 140L

Working capacity : 100L

Materials: Sus304 stainless steel, with thickness 5mm

Vacuum degree: -0.098MPa, no less than -0.085 MPa after 24hours

Voltage supply

Operating voltage 380 v / 50 hz / 3 phase,

Control voltage 24 v DC

Weight: About2800KG

Dimension (L*W*H): 2000×1200×2750（mm）
