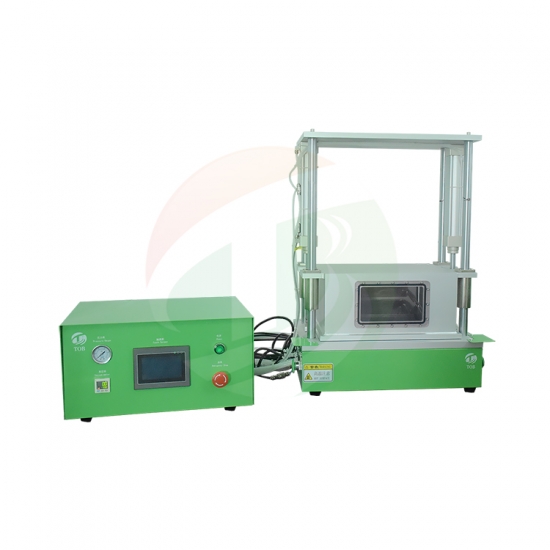

TOB TOB-YF200-JZ Pouch Battery Electrolyte Vacuum Diffusion Chamber With Pre-Sealing All-In-One Machine (-90Kpa~0)

  • 制造商: TOB
    Model: TOB-YF200-JZ
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Power Supply: 110-240 V, Single Phase 50/60Hz

Max. Power: 500W

Compress Air: 0.5-0.8Mpa

Chamber Body: 12mm thick Aluminum case with observation window

Vacuum Level

Vacuum condition remains stable,

vacuum degree and vacuum circulation times can be set independently

Vacuum mode (once or twice) can be selected

Easy program setting for specific vacuum condition

Vacuum degree can up to -90Kpa~0, with good sealing,

can guarantee 1 minute air leakage is not more than 0.01 MPa

Vacuum Condition Hold Time: 0 - 9999 sec, adjustable

Sealing advantage

1. Sealing Head adopts copper material, good heat transfer effect,

2. With adjust plate, Can apply to different specifications battery, and the adjusting easily

Sealing head TEM: RT-250℃, adjustable

TEM accuracy: ±2℃

Heat sealing pressure: 0~7Kg/cm2, adjustable

Hot Sealing Time: 0~99s, adjustable

Sealing Blade

Hard type (without rubber, only for Al case sealing,

not suitable for sealing case with tab in between)

Sealing width: 5mm, customized

Sealing head length: 200mm

Suitable battery size(Inner size): 180*120*10mm


Work box: 570*420*750mm

Control Unit: 460*480*250mm

Inner Chamber Size:350*285*165mm

Net weight: About 76kg
