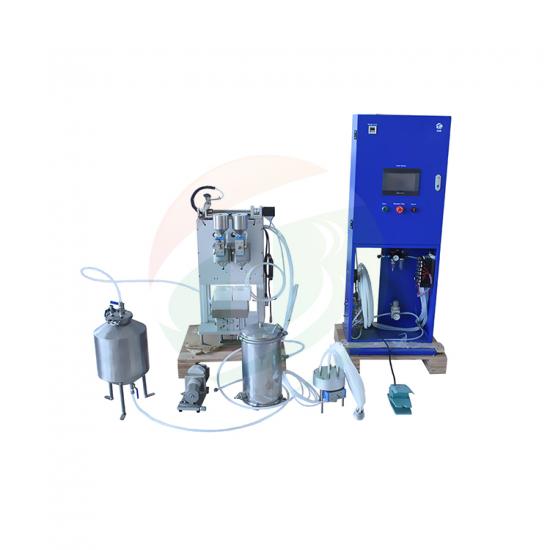

TOB TOB-ZT60B Threaded Cylindrical Supercapacitor Vacuum Electrolyte Filling Machine

Applicable products: diameter 60 mm batteries, super capacitor,height 50-180mm

Filling station: Single face 2 stations

Filling accuracy: ±2%, 0~250ml adjustment

Vacuum: Vacuum pressure is maintained above -98KPa during injection(vacuum pump provide by yourself)

Nitrogen: ≥0.4MPa

Voltage: AC220V

Power: 1.5KW

The key parts are made of stainless steel corrosion resistant materials.
