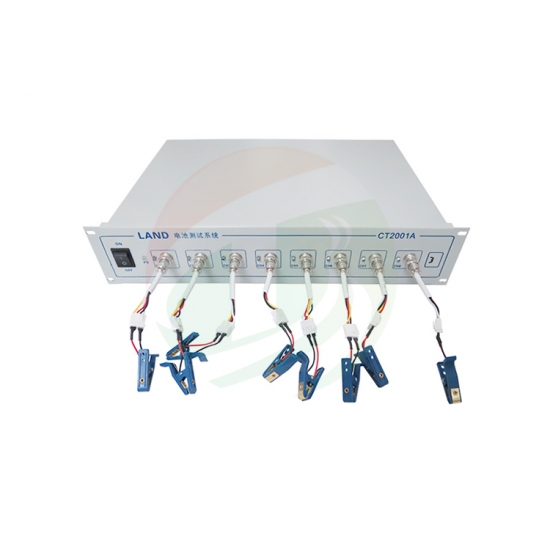

TOB 5V50mA 纽扣电池测试设备

Source voltage: 110v to 220v 50/60HZ

Power: 30W

Current range: 0-50mA    0.05%RD±0.1%FS (control and measurement)

Voltage range: 0-5V   0.1%RD±0.1%FS (control and measurement)

Cycles: 9999cycles

Contents of step: Constant current c/d , constant voltage c/d, constant power discharge, constant resistance discharge, DCIR,rest

Conditions of constraint: Time, voltage, current, capacity, etc.20 kinds

Protection modes: Overvoltage, under voltage, over current, under current, over capacity, etc.

Programming steps: Unlimited (more than 200 steps)

Channels

Eight independent programmable channels

Each channel can set different working modes and functions independently

Output mode: 4 electrode (supporting reference electrode test)

Dimension: 250*200*60mm

Weight: 12kg
