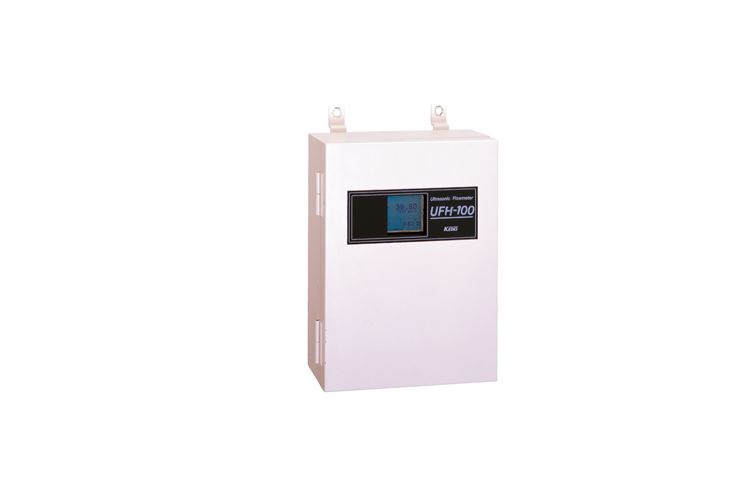

Tokyo Keiki UFH-100 明渠流量计

- Measurement:
+ Application : Free surface flows such as agricultural water, river water, waste water, processing water, industrial effluents, etc.
+ Fluid temperature : 0 ~  40°C
+ Turbidity Less than SS10,000mg/L
- Measurement Range:
+ Flow rate : 0 ~ full water level flow
+ Water level : 0 ~ 10m
+ Flow velocity :  0 m ~10m/s
- Output signal:
+ Flow: 4~20 mA DC ( R within 750 ohm)
+ Flow pulse: AC 3~250 V/ DC 3 ~ 125V
+ Flow velocity: 4 ~ 20 mA DC
+ Water level: 4 ~ 20 mA DC
- Measurement Accuracy :
+ Flow rate (Flow velocity level calculation method )  : Forward flow: ±3% FS
+ Water level : Depends on level gauge used.
+ Flow velocity (Ultrasonic pulse transit time difference method ) : ±1%RD  (for flow velocity above 0.8m/s)   . ±8 mm/s (for flow velocity less than 0.8 m/s)
- Display :
Flow rate: dependant on max. flow value setting (max 6 digits, including comma, decimal point)
Level: dependant on max. level setting
Flow velocity: dependant on max. flow velocity setting (max. 6 digits, including comma, decimal point)
Totalized value: 6 digits
Power : AC 90-132V (50/60Hz±2Hz)
Power consumption : AC 100V approx. 30VA . AC 240V approx. 40VA
Temperature range : -10°C~  50°C
Humidity range : 20% ~ 90% RH (non-condensation)
Weight : Approximately 10kg
