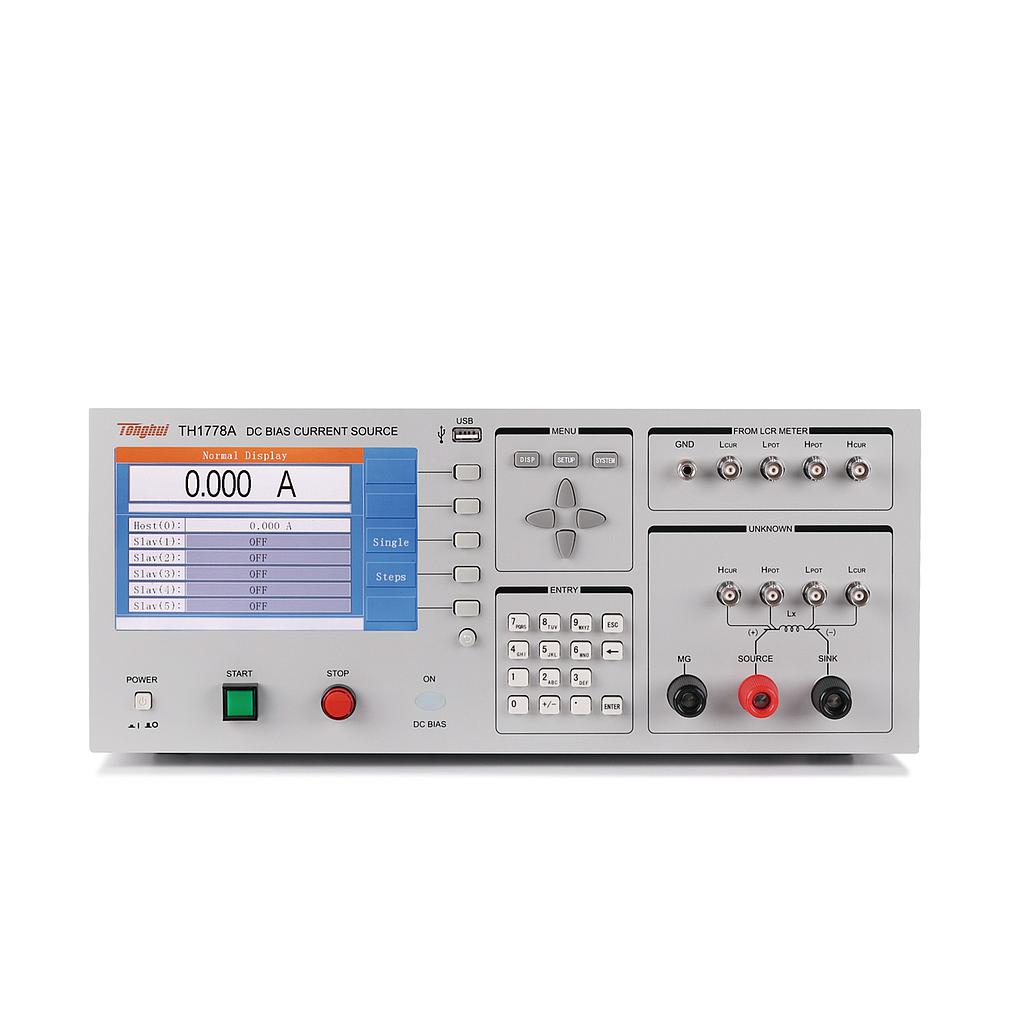

Tonghui TH1778A 直流偏置电流源 (1.000A/5.000A/20.0A; 0Hz-2MHz)

Display:

- Display: 480×272 16:9 24-bit truecolor TFT LCD

- Interface: Complete grafic user interface

Current step:

0mA-1.000A: 5mA

1.000A-5.000A: 25mA

5.0A-120.0A: 100mA

Supporting test frequency: 0Hz-2MHz

Sweep adjustment time:

0mA-1.000A: 4ms-3600s

1.000A-5.000A: 10ms-3600s

5.0A-120.0A: 20ms-3600s

Minimum interval of sweep adjustment step:

0mA-1.000A: 5mA

1.000A-5.000A: 25mA

5.0A-120.0A: 100mA

Range: 1.000A/5.000A/20.0A

Maximum output voltage: 35V (when outputting 1.000A. For different ranges, please refer to the user manual)

Interface: RS232S、laverLink

Work environment:

- Temperature: 0℃-55℃

- Humidity: <90%RH

Power requirement of adapter:

- Voltage: AC 220V/110V(1±10%)

- Frequency: 50Hz/60Hz(1±5%)

Power: ≤60VA

Dimension(W×H×D): Single one: 430×185×473(mm) (not including equipment cabinet)

Weight: Single one: 18kg(not including equipment cabinet)
