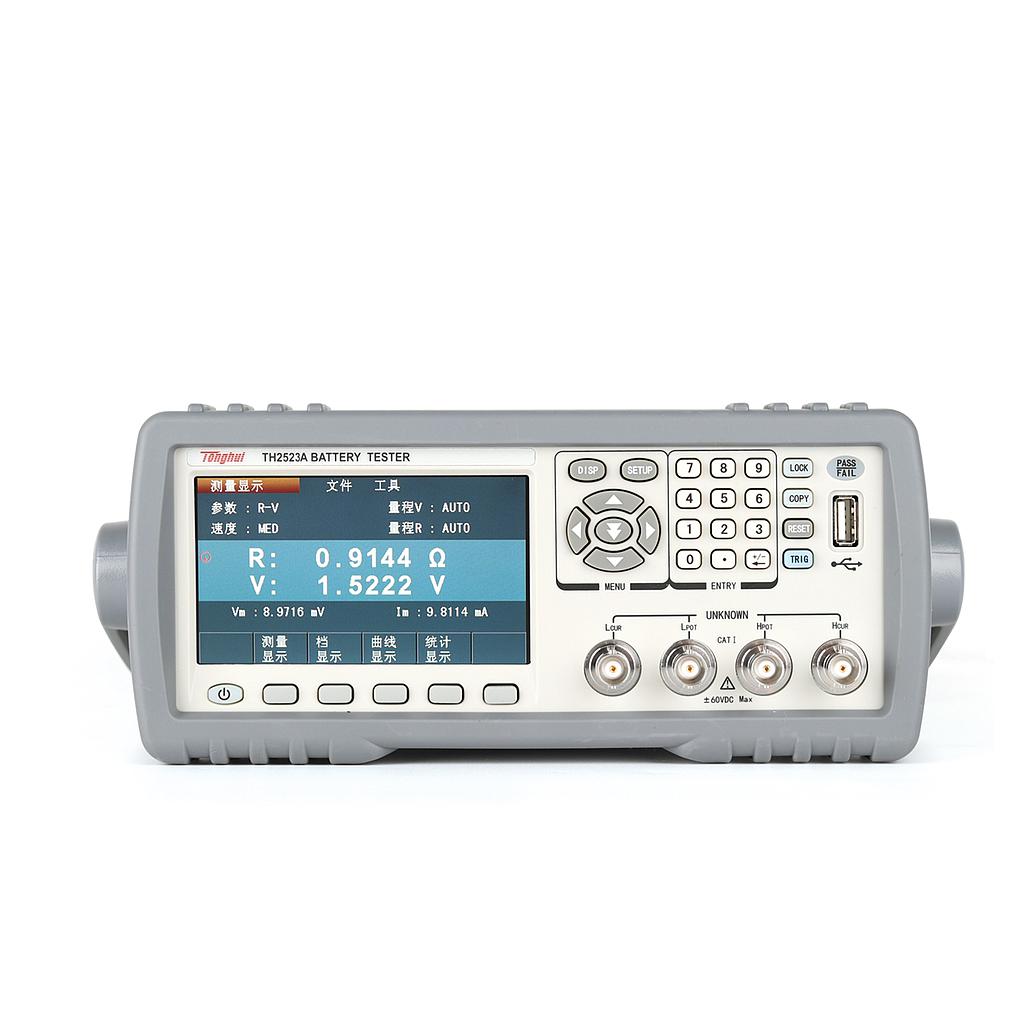

Tonghui TH2523A AC Low Resistance Tester (3kΩ)

Display:

 - Displayer: 4.3 inch 480x272 24 bit color TFT display

 - Displayed Digit:

R: slow 5 digits, Max. displayed digit 35000; fast, Max. displayed digit 3500

V: slow 5 digits, Max. displayed digit 35000; fast, Max. displayed digit  3500

Parameter: R, V, R-V, Z-θ°, Z-θr,L-Q, L-R, R-X, R-Q

Basic Accuracy: R: 0.1%, V: 0.05%

Test Signal Source:

 - Frequency: 1kHz ± 0.2Hz sine waveform

 - Constance Current: 100mA/10mA/1mA/100uA/10uA

Display Range:

 - R/ Z/ X: 1uΩ—3.5kΩ

 - DC V: 100uV—350V

 - L: 0.2nH-1H

 - Q: 0.001—9999.9

 - θd(deg): -179.99—179.99

 - θd(rad): -3.1416—3.1416

Range:

 - AC R: 30mΩ/300mΩ/3Ω/30Ω/300Ω/3kΩ

 - DC V: 30V/300V

Max. Input Voltage: 350V

Test Speed(time/s): FAST: 50 times/s; MED: 10 times/s; SLOW1: 5 times/s; SLOW2: 3 times/s

Comparator: 10 bins

Range Mode: Auto, hold

Trigger Mode: Internal, manual, external, bus

Interface: Handler、RS232、USB DEVICE、GPIB(optional)、USB HOST

General Specification:

Operating Environment:

 - Temperature: 0℃ -40℃

 - Humidity: ≤90%RH

Power Supply:

 - Voltage 100V-120V, 198V-242V

 - Frequency: 47Hz - 63Hz

Power Consumption: Max.15AV

Dimensions (WxHxD): 215mmx87mmx335mm(net) 235mmx105mmx360mm (with sheath)

Weight: About 3.6kg
