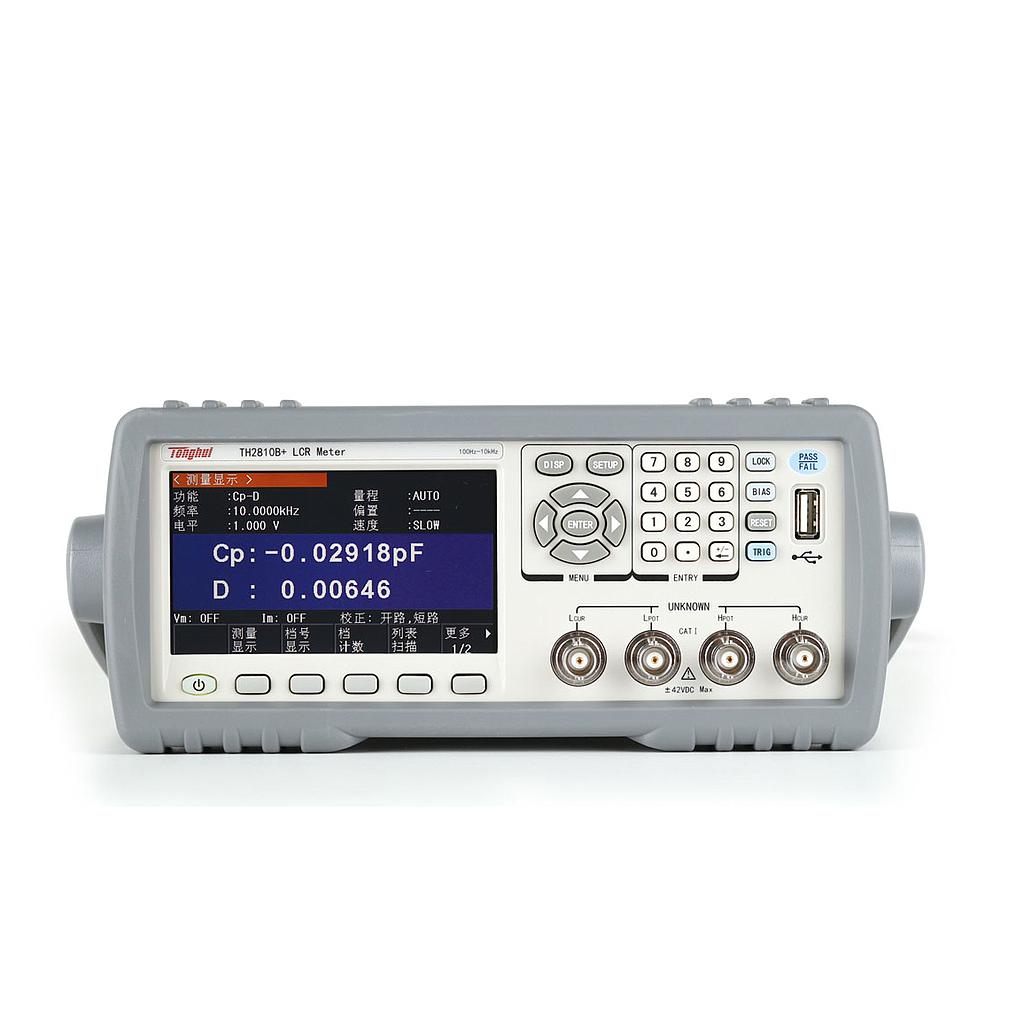

Tonghui TH2810B+ LCR Meter (100Hz~10kHz)

Basic Accuracy: 0.1%

Test Frequency: 100Hz,120Hz,1kHz,10kHz

Test Parameters: L, C, R,Z|, D, Q, X, θd, θr, Vm, Im, △%

V/I  Monitor: Yes

AC Test Signal Level: 0.1Vrms,0.3Vrms,1Vrms

Signal Source Internal Resistance: 10Ω, 100Ω

Test Terminal Configuration: 5-terminal

Test Speed(ms/time): Fast: 19ms; Medium:83ms; Slow: 333ms; F≤120Hz Fast :4XT+3ms

Trigger Mode: Internal, External, Manual, Bus

Arithmetical Operation: Direct reading, △ABS,△%

Delay: Trigger delay, step delay: 0—60.000s, 1ms step

Detail

Instrument Accessories

Three core power cord

TH26048A 4-terminal test fixture

TH26011CS 4-terminal Kelvin test cable

TH26010 Gilded shorting plate
