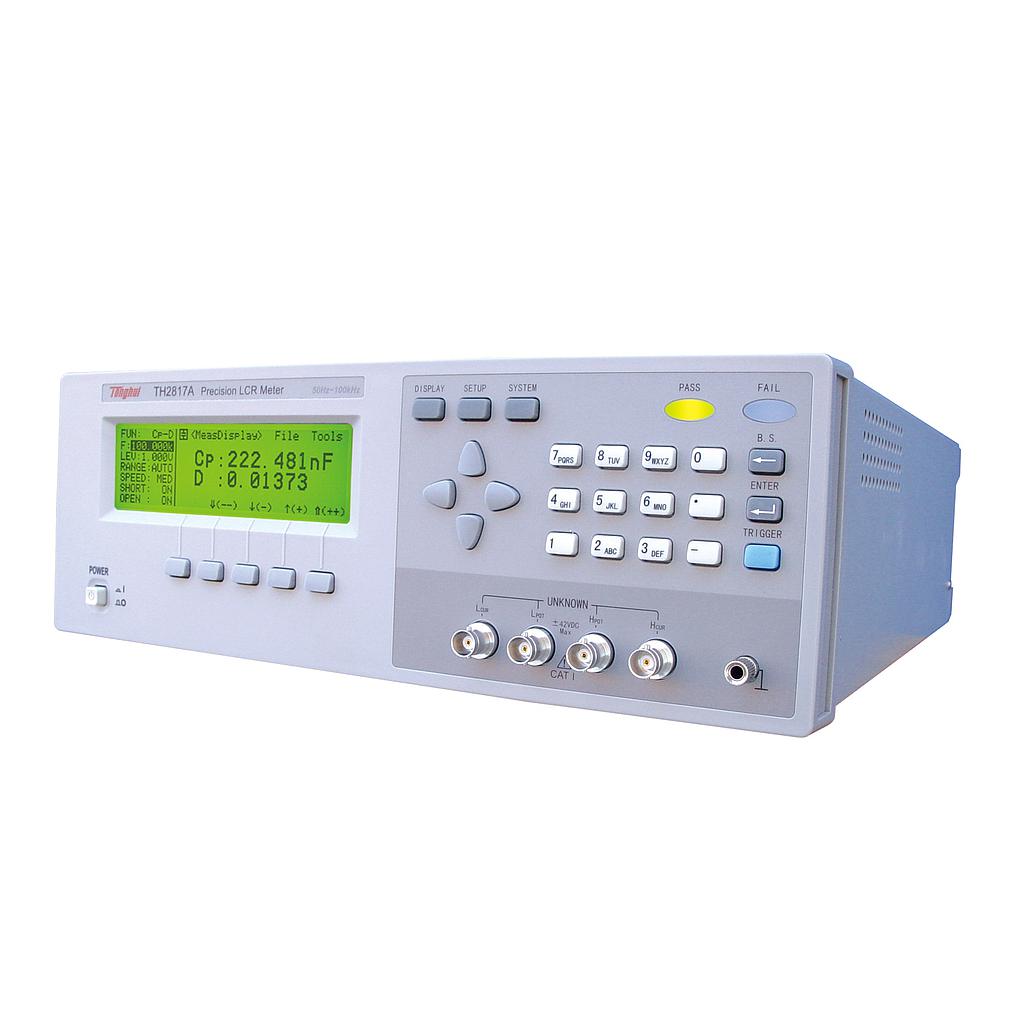

Tonghui TH2817A Precision LCR Meter (50Hz~100kHz)

Test parameter: |Z|, C, L, X, B, R, G, D, Q, θ

Basic accuracy: 0.05%

Measuring speed:

- Slow: 1.5meas/sec

- Med: 10meas/sec

- Fast: 30meas/sec

Signal frequency:  from 50Hz to 100kHz: 50Hz, 60Hz, 100Hz, 120Hz, 200Hz, 400Hz, 500Hz, 1kHz, 2kHz, 4kHz, 5kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz , 16 points

Output impedance; 30Ω , 100Ω

Test Level: 10mVrms~2.0Vrms, 10mV steps

Dải hiển thị:

- |Z|, R, X: 0.00001Ω — 99.9999MΩ

- C: 0.00001pF — 9.99999F

- L: 0.00001μH — 99.9999kH

- G,B: 0.00001μS — 999.999S

- D: 0.00001 — 9.99999

- Q: 0.00001 — 99999.9

- θ(DEG): -179.999º — 179.999º

- θ(RAD): -3.14159 — 3.14159

- Δ%: -999.999% — 999.999%

Detail

Instrument Accessories

TH26005A 4 terminal test fixture

TH26011A 4 terminal Kelvin test clip leads

TH26010 Gilded shorting plate

Options

TH26047 4 terminal test fixture

TH26048 4 terminal test fixture

TH26006 Axial component test fixture

TH26007A Core inductor test fixture

TH26008A SMD component test fixture

TH26009B SMD Kelvin test tweezers

TH26033 GPIB interface cable

TH26034 RS232C interface cable

TH10001 GPIB interface board

TH12004 RS232C control software
