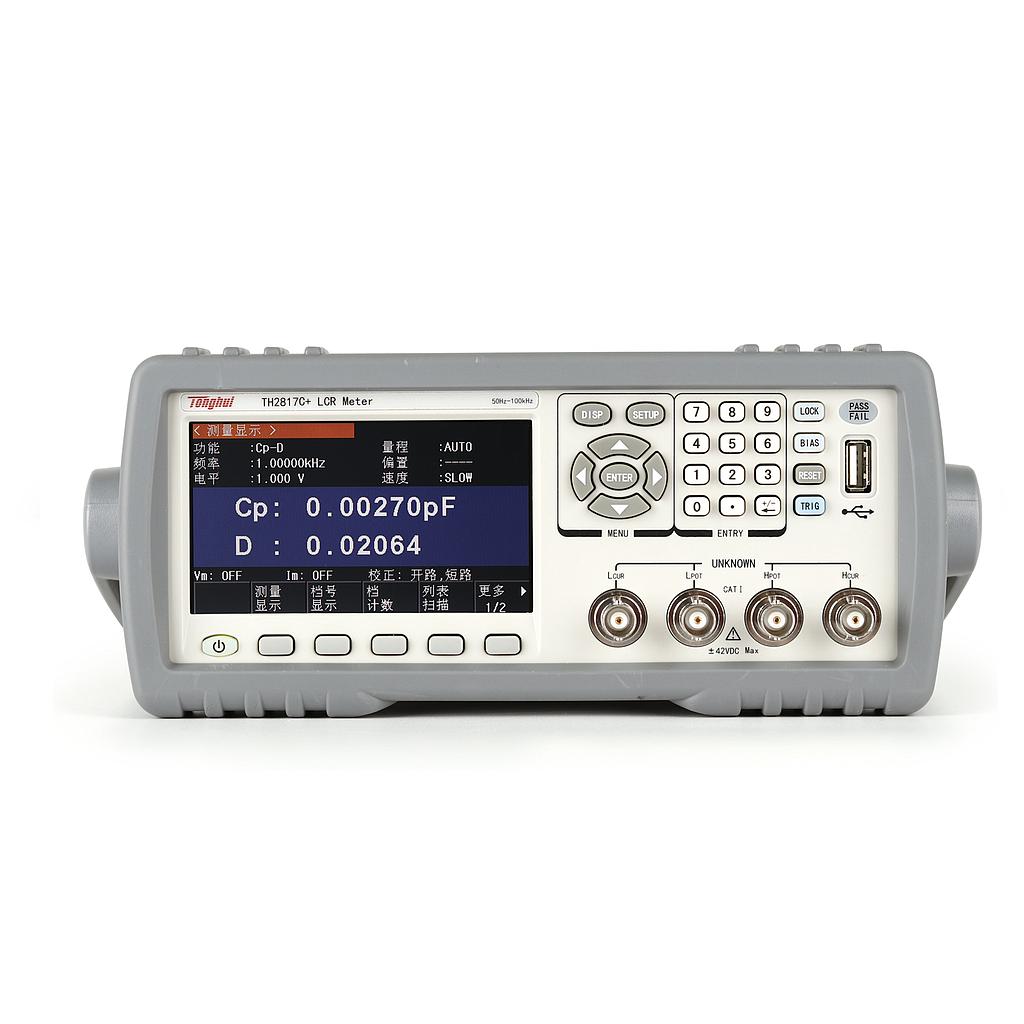

Tonghui TH2817C+ LCR Meter (50Hz~100kHz)

Basic Accuracy: 0.1%

Test  Frequency: 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz,100kHz, total 10 points

Test Parameters:

- LCR: L, C, R,Z|, D, Q, X, θd, θr, Vm, Im, △%

- Transformer: M, N, 1/N, L1/L2, DCR1/DCR2, C(primary-secondary), P(phase), Lk1/Lk2(leakage inductance)

- Balance test: L, R, Z, DCR

V/I monitor: Yes

Test signal level:

- AC: 0.1Vrms,0.3Vrms,1Vrms

- DC: ±1V

Source Impedance: 10Ω, 100Ω optional

Test terminal configuration: 5-terminal

Test Speed (ms/time): Fast: 19ms; Medium:83ms; Slow: 333ms

Trigger mode: Internal, External, Manual, Bus

Rack mount (mm): 215(W) x 88(H) x 335(D)

Dimension (mm): 235(W) x 105(H) x360(D)

Weight: 3.6kg
