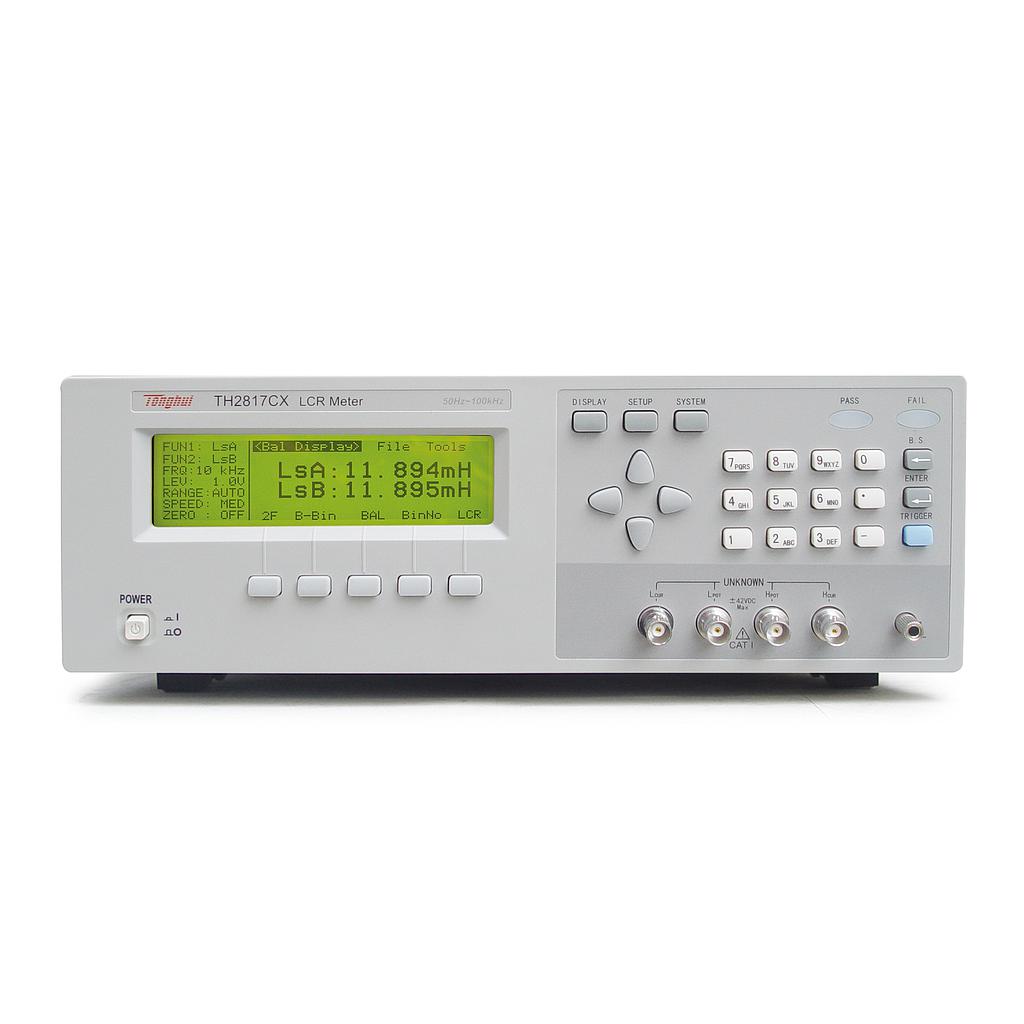

Tonghui TH2817CX LCR Meter (50Hz~100kHz)

Measurement parameter:

- LCR: |Z|, R, X, C, D, L, Q, θ(deg), θ(rad)

- Transformer: M, N, 1/N, L2, DCR2,DCR

- Balance test: L, C, R, Z, DCR2

Basic accuracy: 0.1%

Measurement speed: Fast: 20, Med: 8, Slow: 2 (times/second) (≥1kHz)

Measurement terminal: 5-terminal

Display mode: Direct, Δ, Δ%

Display: 240×64 dot-matrix LCD with 5-digit resolution

Signal frequency: 10 points: 50Hz, 60Hz, 100Hz, 120Hz, 1kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz

Source impedance: 30Ω, 100Ω

Test level: 0.1Vrms, 0.3Vrms, 1Vrms

Measurement display range:

- |Z|, R, X: 0.0001Ω - 99.999MΩ

- C: 0.001pF - 9999.9µ F

- L: 0.001µH - 99.999kH

- D: 0.0001 - 9.9999

- Q: 0.0001 - 9999.9

- θ: (DEG) -179.99º - 179.99 º

- θ: (RAD) -3.1415 - 3.1415

- Δ%: -99.999% - 999.99%

- N,1/N: 0.001 - 999.99

- DCR: 0.1mΩ - 199.99kΩ

- M,L2: 0.001μH - 99.99kH

Operating temperature & Humidity: 0°C - 40°C, ≤90%RH

Power supply: 198V - 242V, 47.5Hz - 52.5Hz

Power consumption: ≤ 30VA

Dimensions (W×H×D): 350mmx120mmx400mm

Weight: Approx. 4 kg

Detail

Instrument Accessories

TH26005A 4-terminal test fixture

TH26011A 4-terminal Kelvin test cable

TH26010 Gilded shorting plate

TH26038 transformer test fixture (only for TH2817C)

Options

TH26047 4-terminal test fixture

TH26048 4-terminal test fixture

TH26005B 4-terminal test fixture

TH26006 axial component test fixture (used with TH26005A)

TH26007A core test fixture

TH26008A SMD component test fixture

TH26009B SMD test tweezers

TH26029B SMD test tweezers

TH10001 GPIB interface

Datasheet


Manual
