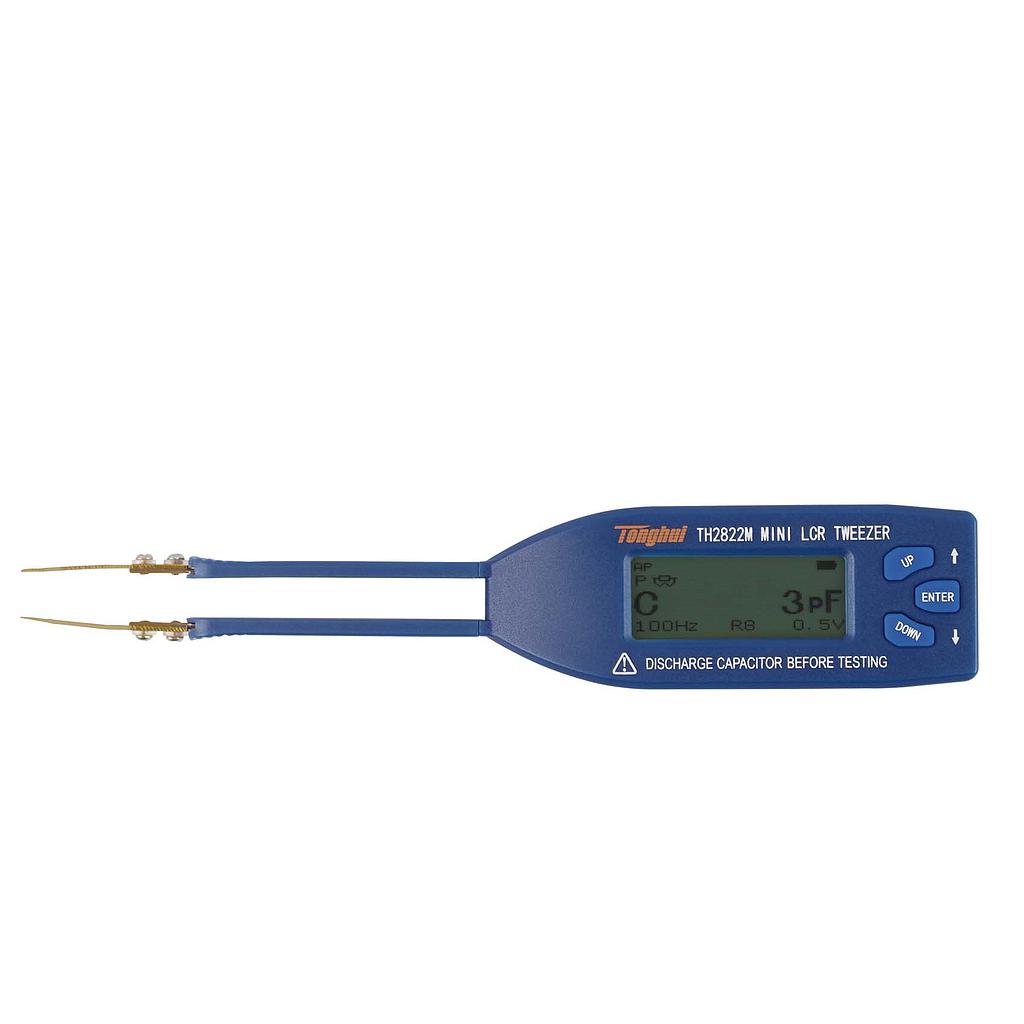

Tonghui TH2822M Mini LCR Tweezer (10kHz; 10kΩ)

Display: LCD liquid crystal display

Basic Measurement Accuracy: 0.5%

Frequency: 100Hz, 125Hz, 1kHz, 10kHz

AC Signal Level: 0.5 Vrms

Signal Source Output Impedance: 100Ω, 1kΩ, 10kΩ

DCR Measurement Function: YES

Test Parameters: Primary parameters: L / C / R / Z / DCR / OS; Secondary parameters: D/Q/θ

Test Speed: 2 times / sec

Equivalent mode: Series ,  Parallel

Parameters and Equivalent Mode: Manual, AUTO

Range Mode: AUTO

Test Terminal Configuration: Two-terminal

Tolerance Compare Mode: 1%, 5%, 10%, 20%

Communication interface: Mini-USB (virtual serial port)

Power Supply:

Battery Model: MLK 403030, 3.7V 200mAH rechargeable battery

Auto Power Off: 30sec, 60sec, 120sec

Detail

Standard Accessories

MINI USB Communication cable

TH26028A AC power adapter
