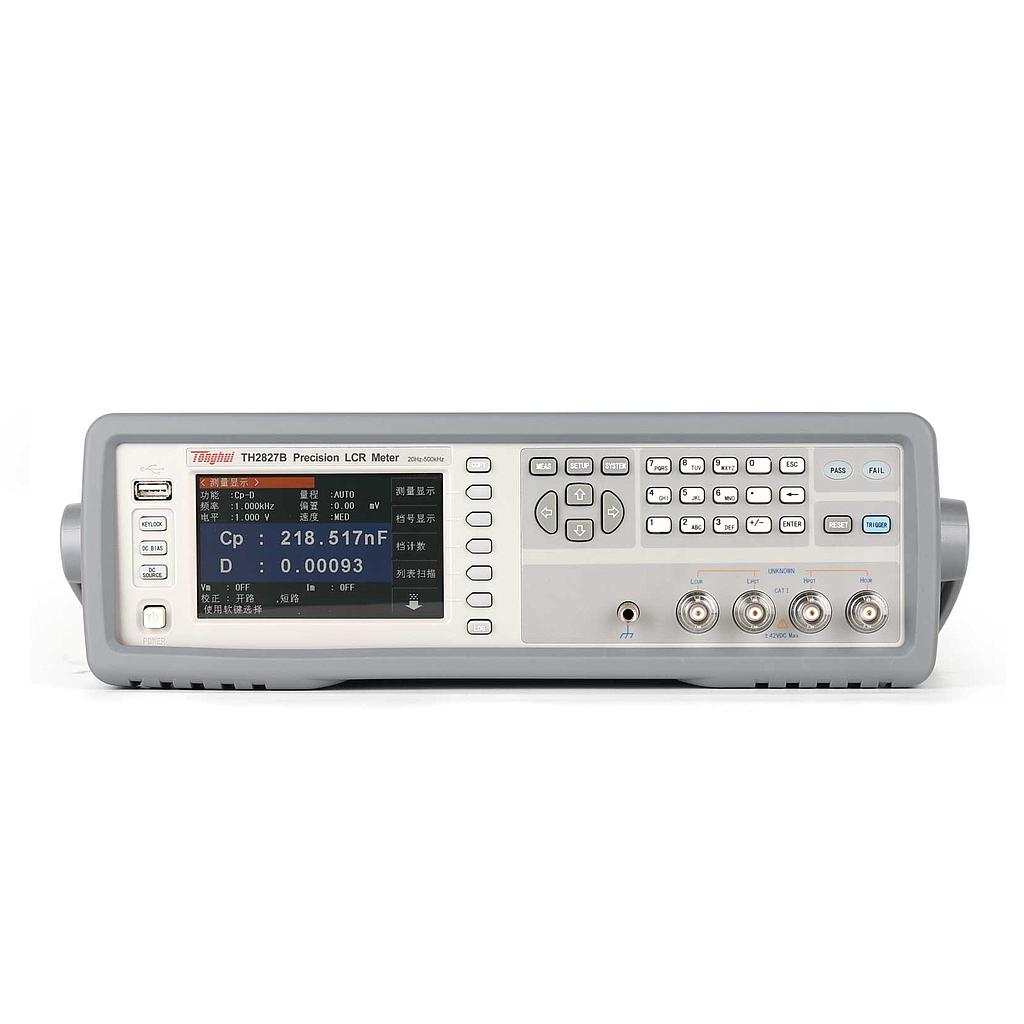

Tonghui TH2827B Precision LCR Meter (20Hz-500kHz)

Display: 800×RGB×480 7-inch TFT LCD display

Frequency of test signal: 20Hz—500kHz

Minimum resolution: 10mHz, 4-digit frequency input

Accuracy: 0.01%

Test parameters of LCR: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR, Vdc-Idc

Basic accuracy: LCR test parameter: 0.05%

Measurement time (≥10 kHz):

- Fast: 13 ms / time

- Medium: 67 ms / time

- Slow:187 ms / time

- Plus the refresh time of display character

Display range of LCR parameter:

- |Z|, R, X, DCR: 0.00001Ω — 99.9999MΩ

- |Y|, G, B: 0.00001μs — 99.9999s

- C: 0.00001pF — 9.99999F

- L: 0.00001μH — 99.9999kH

- D: 0.00001 — 9.99999

- Q: 0.00001 — 99999.9

- θ(DEG): -179.999º — 179.999º

- θ(RAD): -3.14159 — 3.14159

- Δ%: -999.999% — 999.999%

Operating temperature and humidity: 0℃-40℃, ≤ 90%RH

Power supply:

- Voltage: 99V-121V,198V-242V AC

- Frequency: 47Hz-63Hz

Consumption: Max. 80 VA

Dimension(W×H×D): 280 mm × 88 mm × 370 mm(with no sheath); 369 mm × 108 mm × 408 mm(with sheath)

Weight: Approx.5 kg
