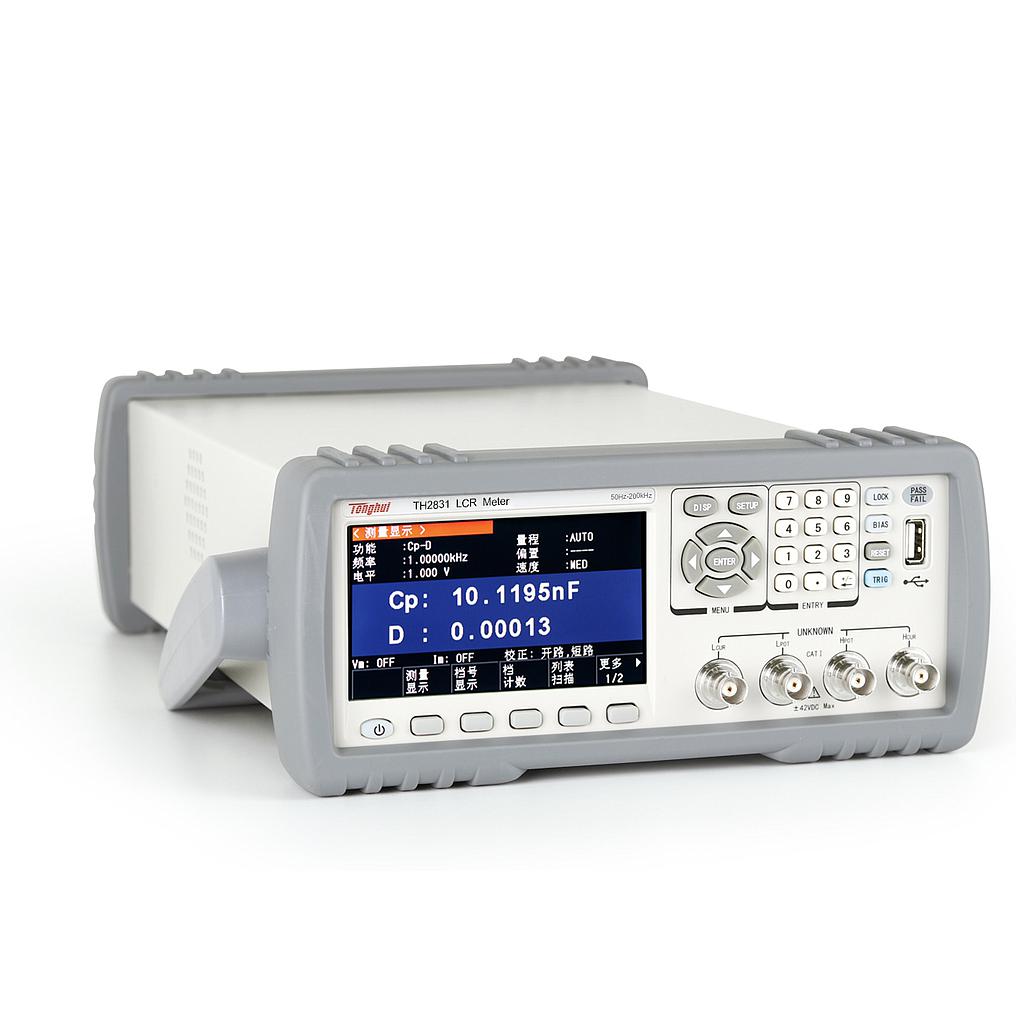

Tonghui TH2831 小型LCR测试仪 (50Hz-200kHz)

Basic Measurement Accuracy:

- LCRZ: 0.1%

- DCR: 0.1%

- Calibration condition: Warm up time: ≥ 30 minutes ; Environment temperature: 23±5ºC

Signal level: 1Vrms ; Corretion: after OPEN, SHORT

Testing cable length: 0 m

Test signal frequency: 50Hz-200kHz, 37 points

50Hz, 60Hz, 75Hz, 100Hz, 120Hz, 150Hz, 200Hz, 250Hz, 300Hz, 400Hz, 500Hz, 600Hz, 750Hz, 1kHz, 1.2kHz, 1.5kHz, 2kHz, 2.5kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7.5kHz, 10kHz, 12kHz, 15kHz, 20kHz, 25kHz, 30kHz, 40kHz, 50kHz, 60kHz, 75kHz, 100kHz, 120kHz, 150kHz, 200kHz

Signal source output impedance: Selectable 30Ω, 100Ω, ±1% at1kHz

Test parameters of LCR: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR

DCR display range: 0.00001 Ω – 99.9999 MΩ

Display range of LCR parameter:

- |Z|, R, X: 0.00001Ω — 99.9999MΩ

- |Y|, G, B: 0.00001μs — 99.9999s

- C: 0.00001pF — 9.99999F

- L: 0.00001μH — 99.9999kH

- D: 0.00001 — 9.99999

- Q: 0.00001 — 99999.9

- θ(DEG): -179.999º — 179.999º

- θ(RAD): -3.14159 — 3.14159

- Δ%: -999.999% — 999.999%

Measurement time (≥10 kHz):

- Fast: 75 meas /sec (13ms)

- Medium: 11 meas /sec (90ms)

- Slow: 2.7 meas /sec (370ms)

Rack mount (mm): 215(W) x 88(H) x 335(D)

Dimension (mm): 235(W) x 105(H) x360(D)

Net weight: 3.6 kg
