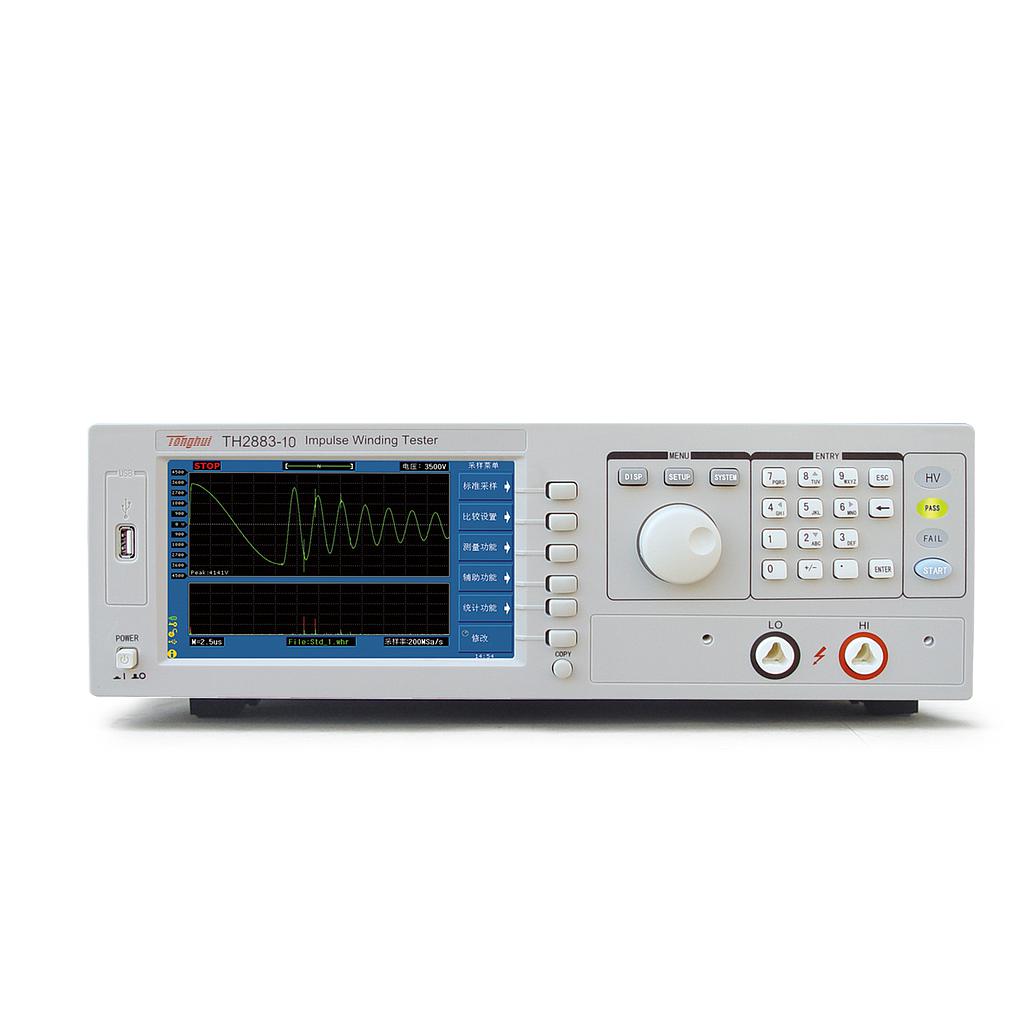

Tonghui TH2883-10 Impulse Winding Tester (500V-10kV)

Impulse Voltage: 500V-10kV, 20V steps

Voltage Accuracy: ±(5% set value +25V)

Readback Accuracy: ±(5% actual value +25V)

Channels: 1

Inductance Test Range: ≥20uH

Impulse Energy: Max.: 0.5 Joule

Test Speed: 3 times/second (when 10kV impulse voltage is output)

Pulses Applied: Max.: 32

Input Impedance: 5MΩ

Display: 800x480 dots, 65k color TFT; Waveform Display Range: 600x256

Interface: Handler, RS232C, USB Device, USB Host, LAN

Power Supply: 220V ±10%   50Hz/60Hz ±5%

Power Consumption: ≤200VA

General Conditions:

Working Environment:

- Temperature: 0℃ - 40℃

- Humidity: ≤75% R.H.
