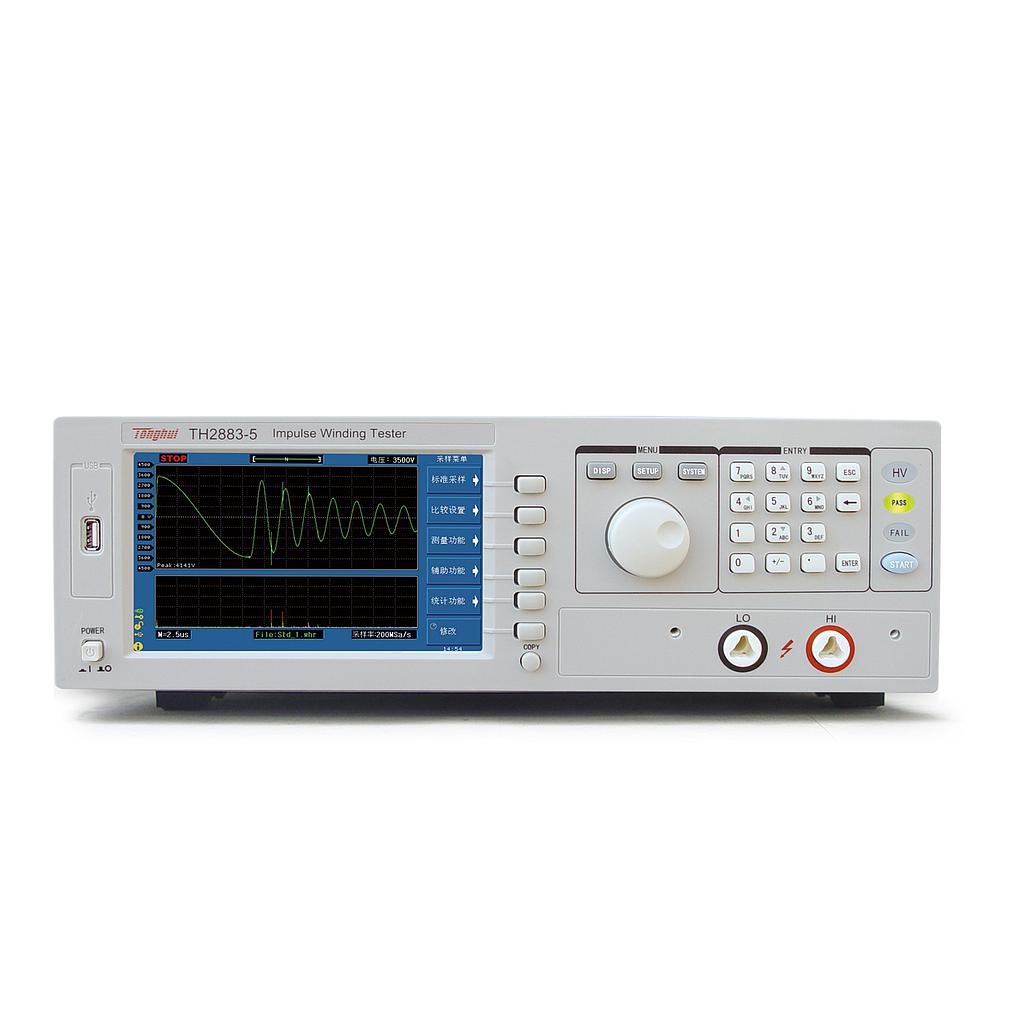

Tonghui TH2883-5 Impulse Winding Tester (100V-5000V)

Impulse Voltage: 100V-5000V, 10V steps

Voltage Accuracy: ±(5% set value +15V)

Readback Accuracy: ±(5% actual value +15V)

Channels: 1

Inductance Test Range: ≥10uH

Impulse Energy: Max.: 0.25 Joule

Test Speed: 6 times/second

Pulses Applied: Max.: 32

Input Impedance: 5MΩ

Display: 800x480 dots, 65k color TFT; Waveform Display Range: 600x256

Interface: Handler, RS232C, USB Device, USB Host, LAN

Power Supply: 220V ±10%   50Hz/60Hz ±5%

Power Consumption: ≤200VA

General Conditions:

Working Environment:

- Temperature: 0℃ - 40℃

- Humidity: ≤75% R.H.
