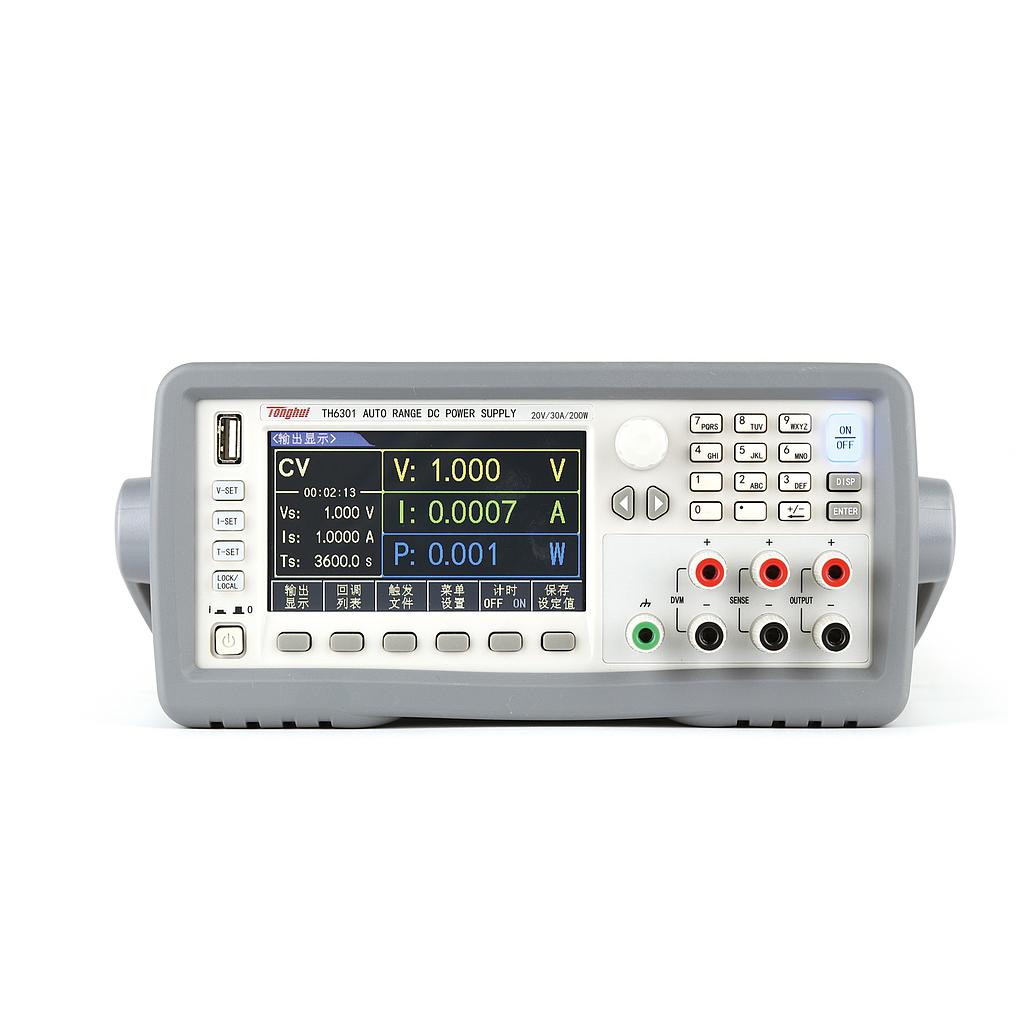

Tonghui TH6301 大范围可编程线性直流电源 Supply (20V; 30A)
制造商: Tonghui Model: TH6301 来源: China 保障: 12 Month - 报价要求
- 联系
Rated Output:
- Voltage: 20V
- Current: 30A
- Power: 200W
Load regulation:
- Voltage: ≤0.01%+20mV
- Current: ≤0.01%+20mA
Power regulation:
- Voltage: ≤0.01%+20mV
- Current: ≤0.01%+20mA
Set Value Resolution:
- Voltage: 1mV
- Current: 1mA
Read-back resolution:
- Voltage: 1mV
- Current: 1mA
Year accuracy (25℃± 5℃):
- Programming:
Voltage: ≤0.03%+5mV
Current: ≤0.1%+30mA
- Readback
Voltage: ≤0.03%+5mV
Current: ≤0.1%+30mA
Ripple and Noise (20Hz-20MHz):
- Differential Mode Voltage: ≤15mVpp
- Differential Mode Current: ≤10mArms
Rise time (10% — 90%): ≤100mS
Fall time (90% — 10%): ≤2s
Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory
Output: Support front and rear panel output, the maximum output current of front terminal is 10A
