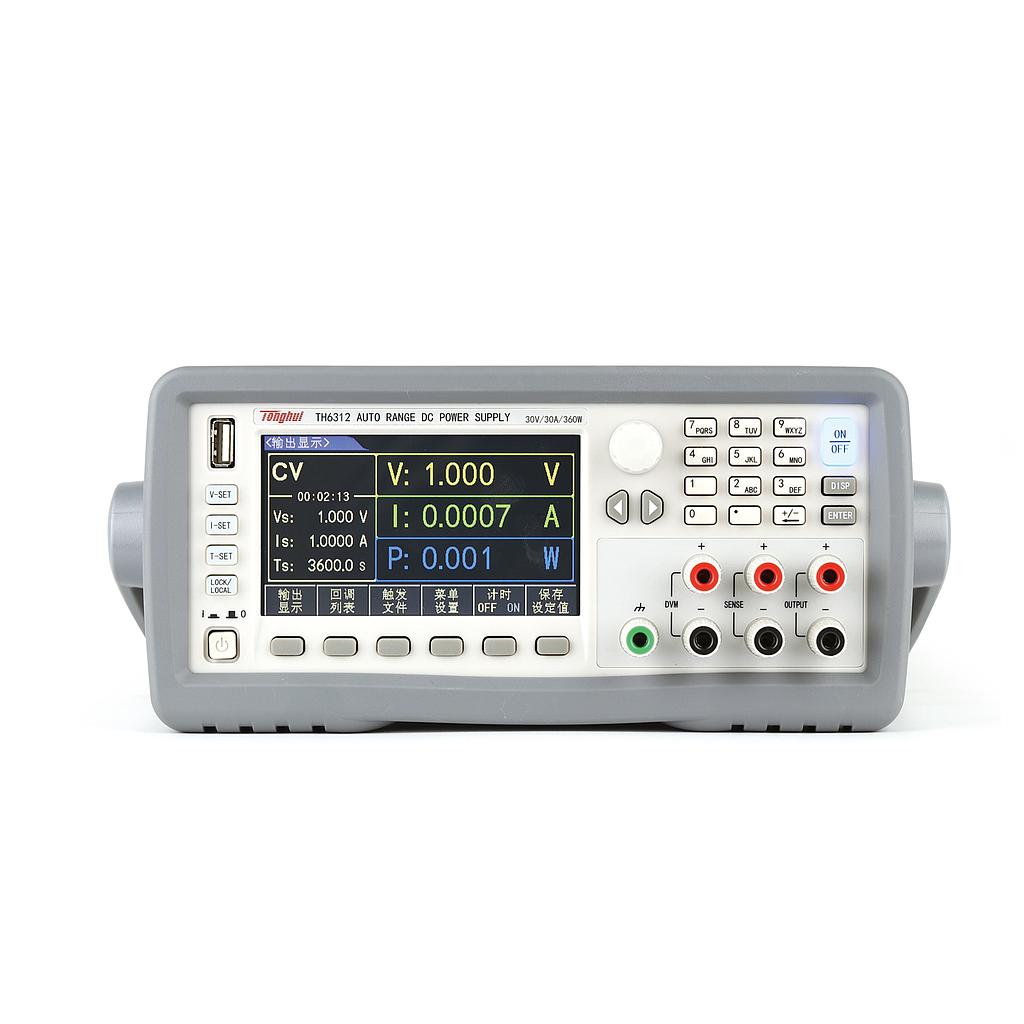

Tonghui TH6312 大范围可编程线性直流电源 (30V; 30A)

Rated Output:

- Voltage: 30V

- Current: 30A

- Power: 360W

Load regulation:

- Voltage: ≤0.01%+20mV

- Current: ≤0.01%+20mA

Power regulation:

- Voltage: ≤0.01%+20mV

- Current: ≤0.01%+20mA

Set Value Resolution:

- Voltage: 1mV

- Current: 1mA

Read-back resolution:

- Voltage: 1mV

- Current: 1mA

Year accuracy (25℃± 5℃):

- Programming:

Voltage: ≤0.03%+5mV

Current: ≤0.1%+30mA

- Readback

Voltage: ≤0.03%+5mV

Current: ≤0.1%+30mA

Ripple and Noise (20Hz-20MHz):

- Differential Mode Voltage: ≤15mVpp

- Differential Mode Current: ≤12mArms

Rise time (10% — 90%): ≤100mS

Fall time (90% — 10%): ≤2s

Memory: 10 groups of trigger output, 100 steps for each group,100 sets of setting memory

Output: Support front and rear panel output, the maximum output current of front terminal is 10A
