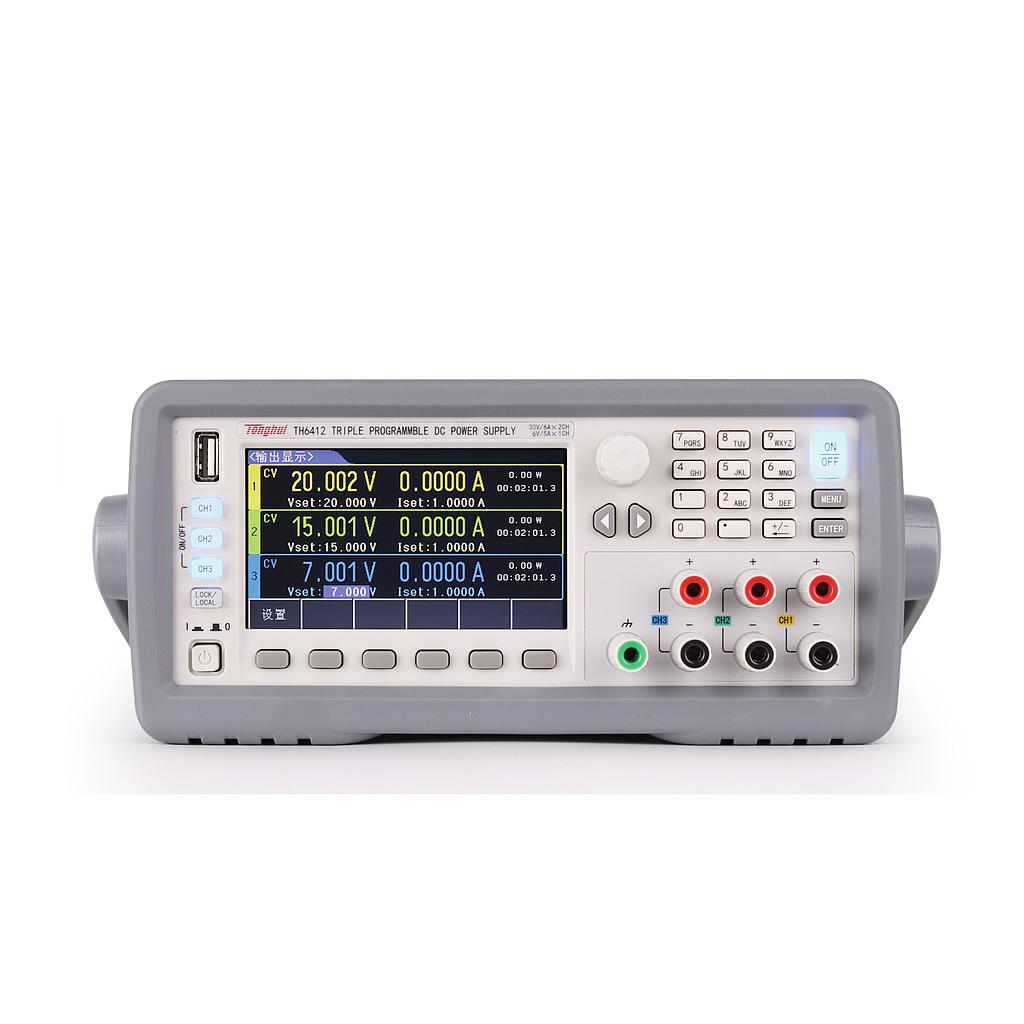

Tonghui TH6412 三通道可编程线性直流电源 (0-30V; 0-5A)
制造商: Tonghui Model: TH6412 来源: China 保障: 12 Month - 报价要求
- 联系
Rated Output (0℃-40℃):
Channel/Range: Range1,Range2/ Range3
- Voltage: 0-30V/ 0-6V
- Current 0-3A/ 0-5A
- Power: 180W/ 30W
Load regulation ± (% Output + Bias):
- Voltage: ≤0.01% + 3 mV
- Current: ≤0.01% + 3 mA
Power regulation ± (% Output + Bias):
- Voltage: ≤0.01% + 3 mV
- Current: ≤0.01% + 3 mA
Programming resolution:
- Voltage: 1mV
- Current: 0.1mA
Read-back value resolution:
- Voltage: 1mV
- Current: 0.1mA
Year accuracy (25℃± 5℃) ± (% Reading + Bias):
- Programming:
Voltage ≤0.03% + 10 mV
Current ≤0.1%+8mA
- Readback
Voltage: ≤0.03% + 10 mV
Current: ≤0.1%+8mA
Ripple and Noise (20Hz-20MHz):
- Normal mode voltage: ≤1mVrms or 4mVp-p
- Normal mode current: ≤3mArms
Series and parallel set value accuracy:
- Voltage: ≤0.02% + 5 mV
- Current: ≤0.1% + 30mA
Timer: 0.1 ~ 99999.9 seconds
Memory: 40 groups of settings files / channels
