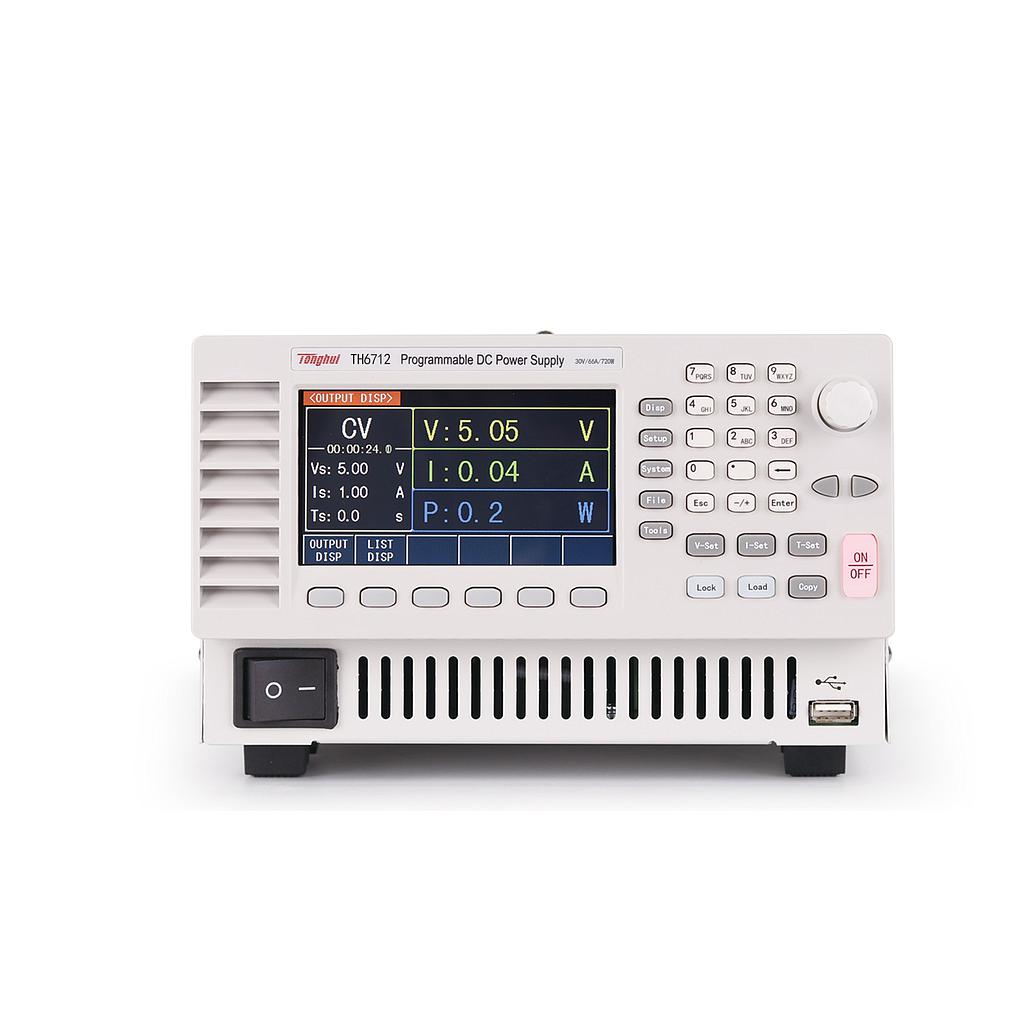

Tonghui TH6712 直流电源 (0-30V; 0-66A)

Rated Output:

 - Power: 720W

 - Voltage: 0-30V

 - Current: 0-66A

Load Regulation:

 - Voltage: ≤20mV

 - Current: ≤77mA

Line Regulation:

 - Voltage: ≤18mV

 - Current: ≤77mA

Set Value Resolution:

 - Voltage: 10mV

 - Current: 10mA

Read Back Value Resolution:

 - Voltage: 10mV

 - Current: 10mA

Set Value Accuracy (25℃±5℃):

 - Voltage: ≤0.1%+10mV

 - Current: ≤0.1%+60mA

Read Back Accuracy (25℃±5℃):

 - Voltage: ≤0.1%+20mV

 - Current: ≤0.1%+70mA

Ripple and Noise (20Hz-2MHz):

 - Differential Mode Voltage: ≤80mVp-p and 11mVrms

 - Differential Mode Current: ≤144mArms

Rise Time: 10%-90%: ≤50ms

Drop Time (Full Load): 90%-10%: ≤50ms

Drop Time (No Load): 90%-10% ≤500ms

Over Voltage Protection (OVP): 3-33V

Over Current Protection (OCP): 5-75.6A

Over Temperature Protection (OTP): Depends on internal temperature

Power Supply: 88-265VAC, 50/60HZ
