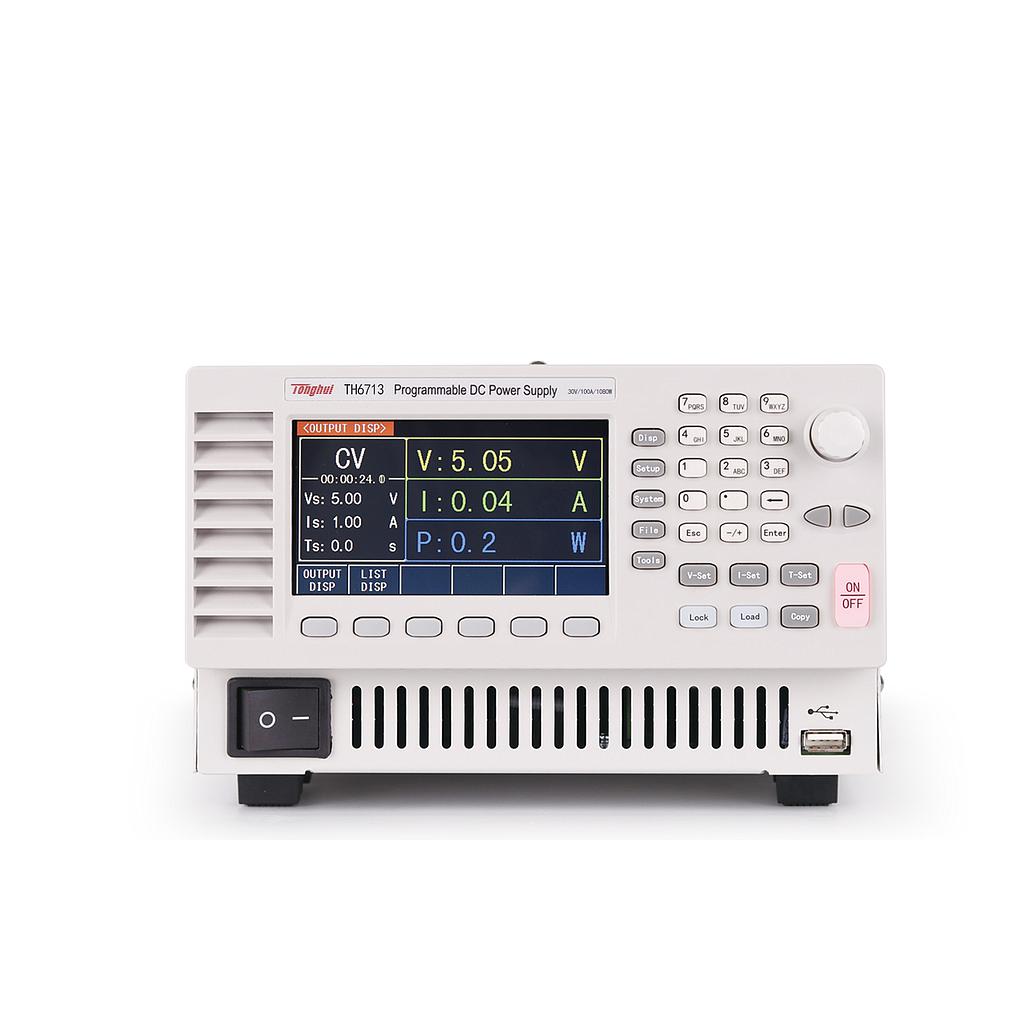

Tonghui TH6713 直流电源 (0-30V; 0-100A)
制造商: Tonghui Model: TH6713 来源: China 保障: 12 Month - 报价要求
- 联系
Rated Output:
- Power: 1080W
- Voltage: 0-30V
- Current: 0-100A
Load Regulation:
- Voltage: ≤20mV
- Current: ≤113mA
Line Regulation:
- Voltage: ≤18mV
- Current: ≤113mA
Set Value Resolution:
- Voltage: 10mV
- Current: 100mA
Read Back Value Resolution:
- Voltage: 10mV
- Current: 100mA
Set Value Accuracy (25℃±5℃):
- Voltage: ≤0.1%+10mV
- Current: ≤0.1%+100mA
Read Back Accuracy (25℃±5℃):
- Voltage: ≤0.1%+20mV
- Current: ≤0.1%+100mA
Ripple and Noise (20Hz-2MHz):
- Differential Mode Voltage: ≤100mVp-p and 14mVrms
- Differential Mode Current: ≤216mArms
Rise Time: 10%-90%: ≤50ms
Drop Time (Full Load): 90%-10%: ≤50ms
Drop Time (No Load): 90%-10% ≤500ms
Over Voltage Protection (OVP): 3-33V
Over Current Protection (OCP): 5-113.4A
Over Temperature Protection (OTP): Depends on internal temperature
Power Supply: 88-265VAC, 50/60HZ
