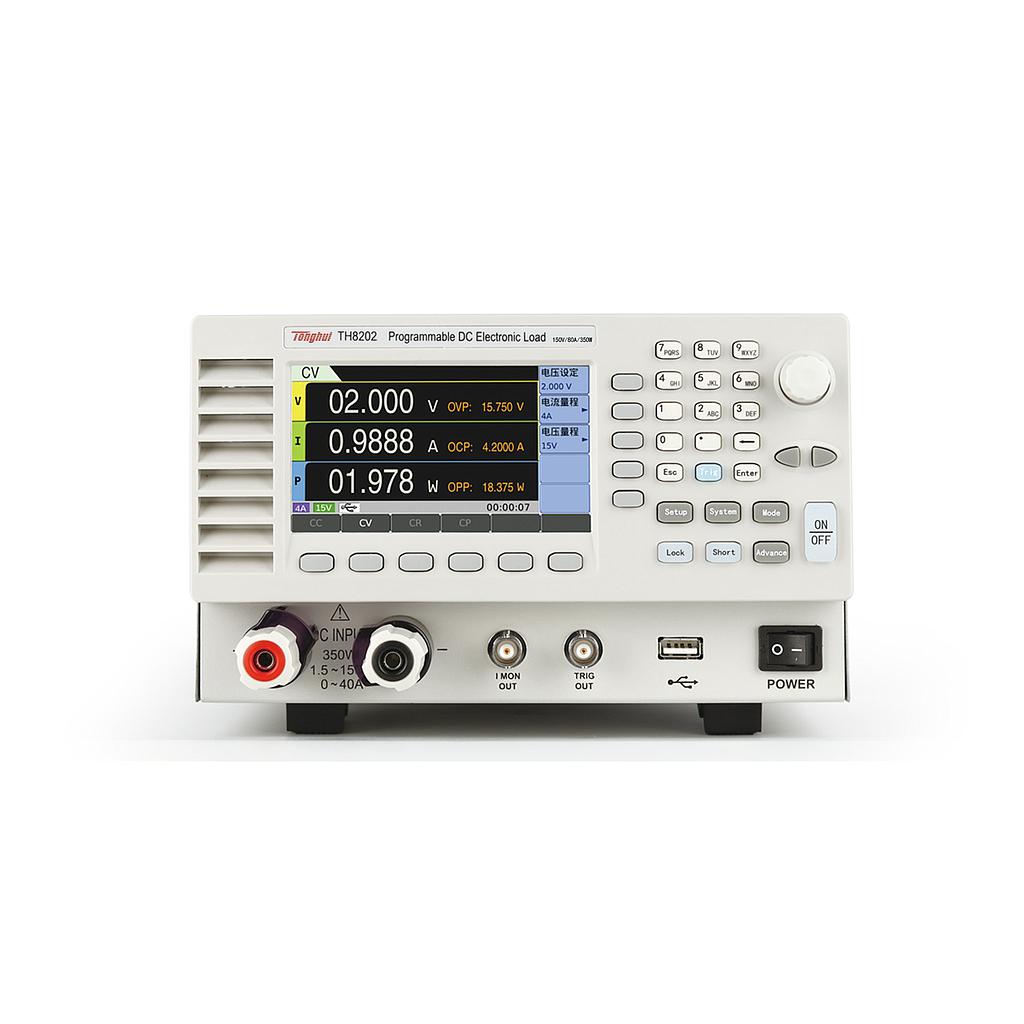

Tonghui TH8202 Programmable DC Load (80A; 350W)
制造商: Tonghui Model: TH8202 来源: China 保障: 12 Month - 报价要求
- 联系
Input Voltage: 1-150V
Current: 0-800mA/0-8A/0-80A
Power: 0-3.5W/0-35W/0-350W
Static Mode: CC mode (constant current mode), CR mode (constant resistance mode), CV mode (constant voltage mode), CP mode(constant power mode)
Accuracy: 0.2% F.S.
Dynamic Mode:
Frequency Range: 100Hz~50kHz/0.01Hz~1kHz
Accuracy: 1µs/1ms+100ppm
External Waveform Mode (20kHz) CC: Control level range 0~10V accuracy: 0.5%F.S.
Range: 0-800mA/0-8A/0-80A
Soft Start: Setting range: 0~500ms; accuracy ±(30%+100µs)
Protection function: Overvoltage Protection (OVP) Overcurrent Protection (OCP) Over Power Protection (OPP) Over Temperature
Interface: Handler、RS232、USB DEVICE、USB HOST、LAN
