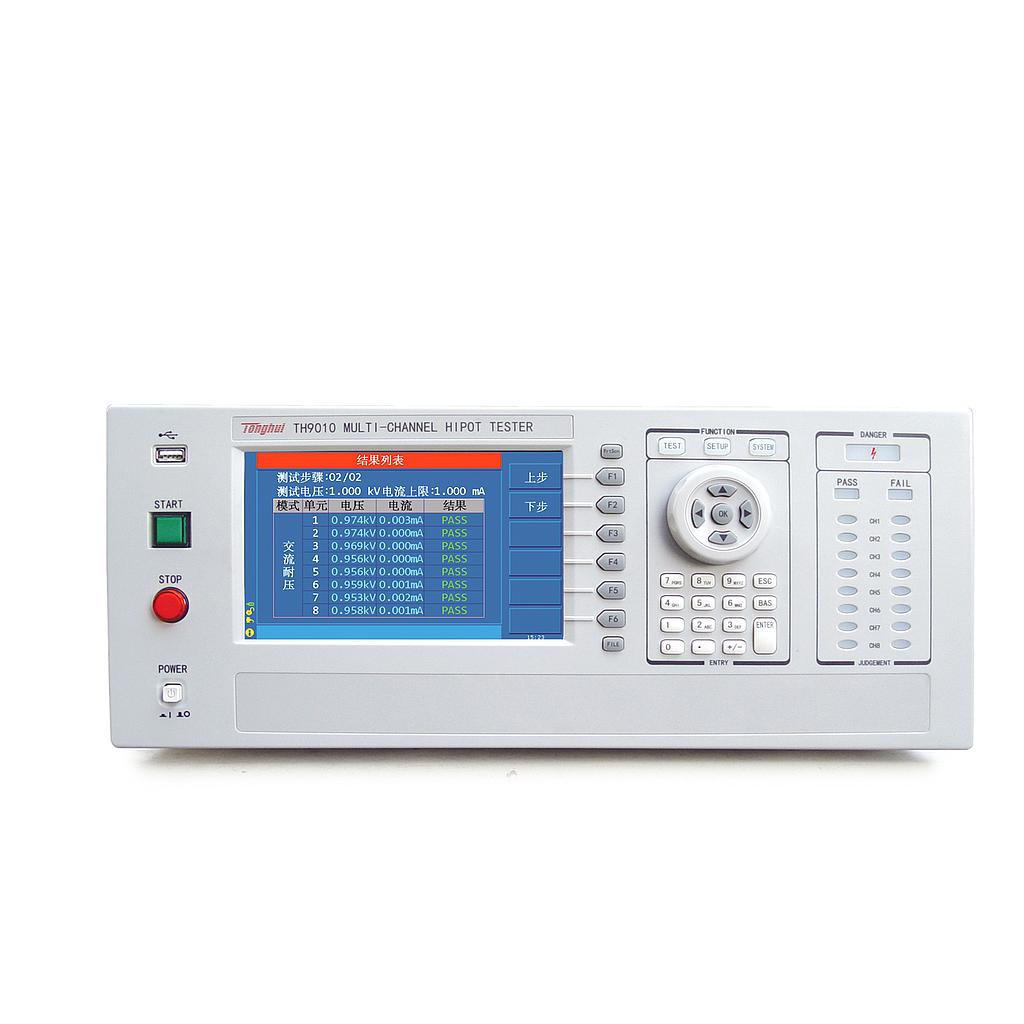

Tonghui TH9010 Hipot Tester (AC: 0.10kV — 5.00kV; DC 0.10kV — 6.00kV)

Number of units: 8 separate channel

Withstanding voltage test

- Output voltage:

AC 0.10kV — 5.00kV ±2%

DC 0.10kV — 6.00kV ±2%

- Current test Range:

AC: 0mA — 10.00mA ±(2% readings + 5 digits)

DC: 0uA — 5.00mA ±(2% readings + 5 digits)

Rapid discharge function: Discharge after test ends (DCW)

Insulation resistance test:

Output voltage: 0.10kV — 1.00kV ±2%

Resistance test range: 0.1MΩ — 10.0GΩ

Resistance test accuracy:

0.10MΩ — 999MΩ ±10%

1.00GΩ — 10.0GΩ ±20%

Discharge function: Discharge after test ends

Arc detection

Test range: Corresponding current 1mA — 20mA

General specification:

Voltage rising time: 0.1s — 999.9s

Test time setting (AC/DC): 0.2s — 999.9s

Voltage fall time: 0.1s — 999.9s

Waiting time (IR): 0.2s — 999.9s

Time accuracy: ±(1%+0.1s)

Memory: Store 100 test files and each file can hold at most 20 testing steps

Interface:

Standard HANDLER, RS232, USB DRV, USB HOST
