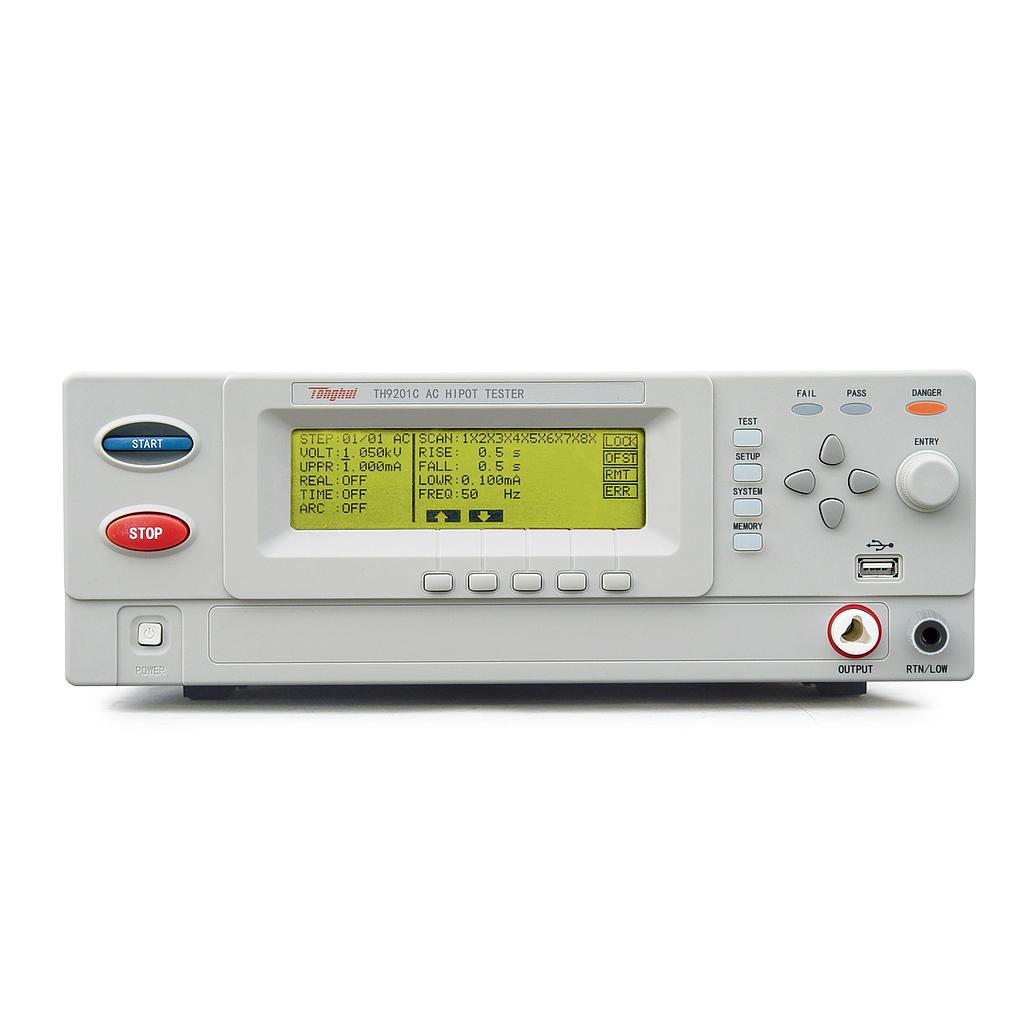

Tonghui TH9201C 耐压测试器 (0.05kV~5kV; 0.05kV~6kV)

Withstanding voltage test

Output Voltage:

- AC: 0.05kV—5kV ±(1.0% of reading+5 digit) (50、60Hz optional)

- Voltage Adjustment Rate≤(1.0% +10V)(rated power)

Current Test Range:

- AC: 0.1mA - 20mA

Arc Detection:

Measurement Range:

- AC: 1mA - 15mA

General Specification

Memory: 50groups, 100 steps per group, totally 500 steps

Voltage Rise-time: 0.1s - 999s

Voltage Fall-time: 0.1s - 999s

Test Time Setting: 0.3s - 999s

Interface:

- Standard: RS232,USB,HANDLER,REMOTE I/O ,SCAN
