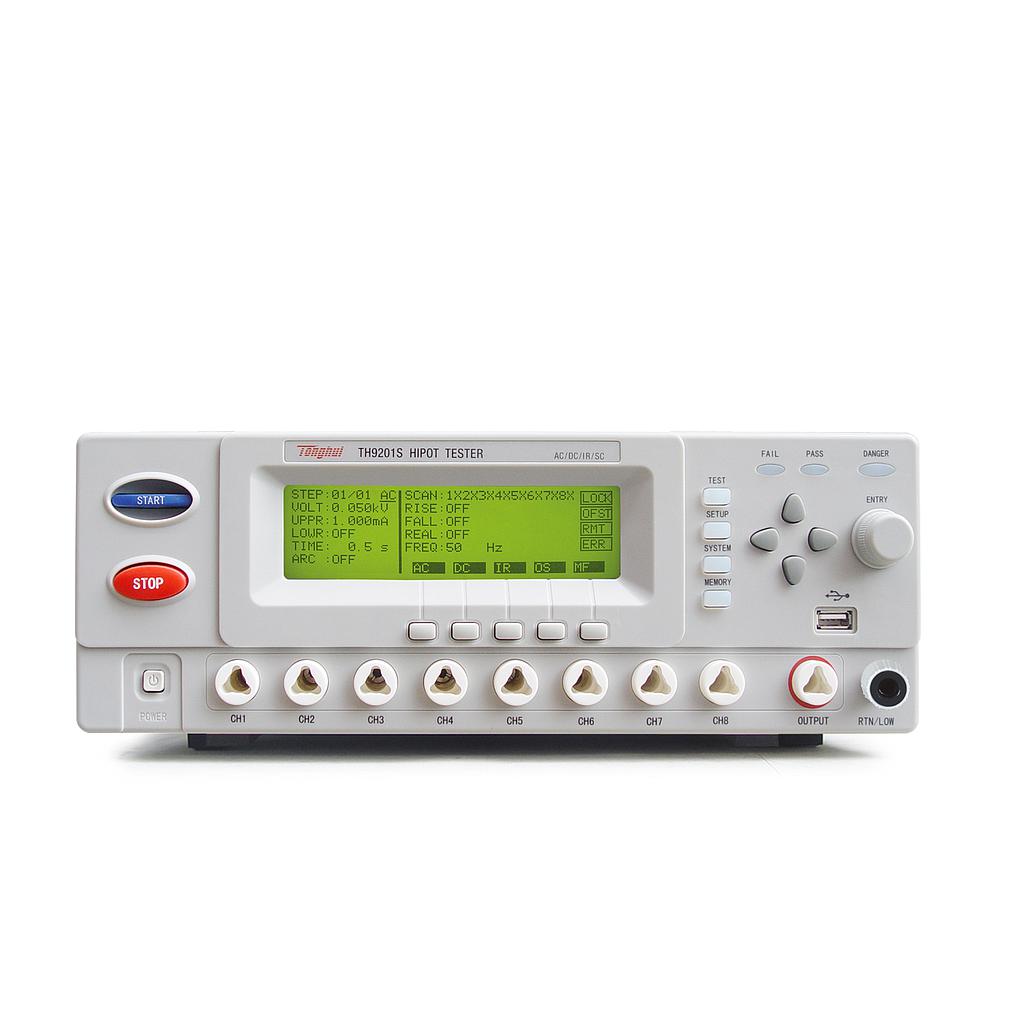

Tonghui TH9201S Hipot测试仪 (0.05kV~5kV; 0.05kV~6kV)

Withstanding voltage test

Output Voltage:

- AC: 0.05kV—5kV ±(1.0% of reading+5 digit) (50、60Hz optional)

- DC: 0.05kV—6kV ±(1.0% of reading+5 digit)

- Voltage Adjustment Rate≤(1.0% +10V)(rated power)

Current Test Range:

- AC: 0.1mA - 30mA

- DC: 0.01mA - 10mA

- Test Accuracy: ±(1.0% of reading+5 digit)

- Discharge Function:Discharge after test ends(DCW)

Insulation Resistance Test

Output Voltage:0.05kV - 1kV  ±(1.5% of reading+5V)

Resistance Test Tange:0.1MΩ -10GΩ,(Current range within 10nA-10mA)

Resistance Test Accuracy:

500V-1000V: 1MΩ - 1GΩ ±(5% of reading +5 digit); 1GΩ - 10GΩ ±(10% of reading +5 digit)

50V-500V: 0.1MΩ - 1GΩ ±(10% of reading +5 digit)

Discharge Function: Discharge after test ends

Arc Detection:

Measurement Range:

- AC: 1mA - 15mA

- DC: 1mA - 10mA

General Specification

8-channel matrix scanner: available

Memory: 50groups, 100 steps per group, totally 500 steps

Voltage Rise-time: 0.1s - 999s

Voltage Fall-time: 0.1s - 999s

Voltage Wait-time: 0.1s - 99.9s (only for DC)

Test Time Setting: 0.3s - 999s

Interface:

- Standard: RS232,USB,HANDLER,REMOTE I/O ,SCAN

- Options: GPIB
