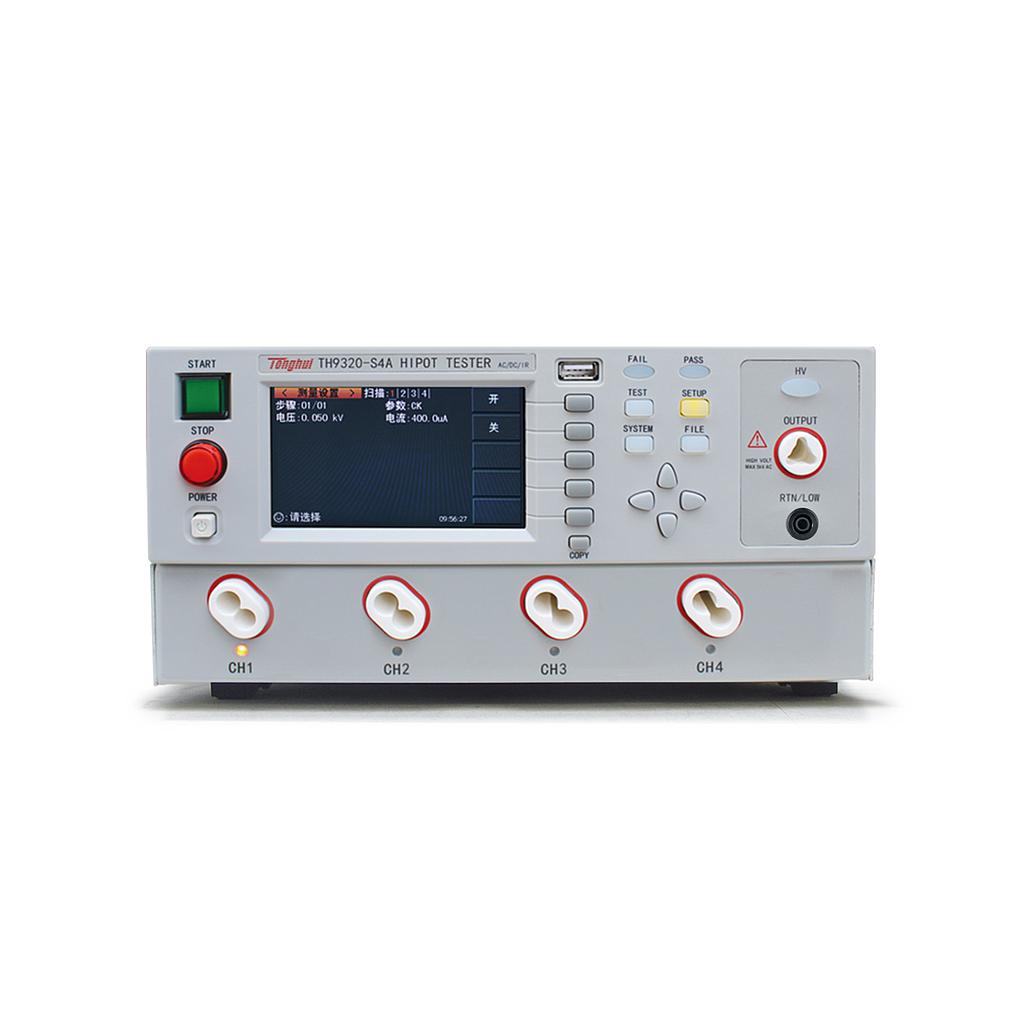

Tonghui TH9320-S4A Hipot tester (AC: 0.05~5.00kV; DC: 0.05~6.00kV)

Withstanding Voltage Test

Output Voltage:

- AC: 0.05 —5.00kV ± (2% reading+5digits) , (50Hz、60Hz optional)

- DC: 0.05 —6.00kV ± (2% reading+5digits)

- Voltage Adjustment Rate: ≤ (1% - 5V)(rated power)

Current Test Range:

- AC: 0.000mA – 20.00mA ±(2% reading+2digits)

- DC: 0uA –10.00mA ±(2% reading+2digits)

- Discharge Function: Discharge after test ends(DCW)

Insulation Resistance Test

Output Voltage: 0.10kV – 1.00kV ±(2%reading+2V)

Resistance Test Range: 1MΩ– 9999MΩ

Resistance Test Accuracy:

- 500V- 1000V: 1MΩ– 1000MΩ ±(5%reading+2digits) ;1000MΩ–9999MΩ ±(10%reading+2digits)

- 100V- 500V: 1MΩ– 1000MΩ ±(10%reading+2digits)

Discharge Function: Discharge after test ends

Arc Detection

Measurement Range:

- AC: 1 – 9 levels (factory default 5)(20mA、18mA、16mA、14mA、12mA、10mA、7.7mA、5.5mA、2.8mA respectively)

- DC: 1 – 9 levels

General Specification:

Memory: 5 groups

Voltage Rising Time: 0.1s – 999.9s

Test Time Setting(AC/DC): 0.2s – 999.9s

Waiting Time(IR): 0.2s – 999.9s

Time Accuracy: ±(1%+0.1s)

Dimension(W×H×D): 280mm×89mm×428mm/10kg

Interface:

Standard: HANDLER, RS232, USBDRV(PC interface), USBHOST(USB port)

Scan Interface: 4 channels

Contact Check Funtion: Yes
