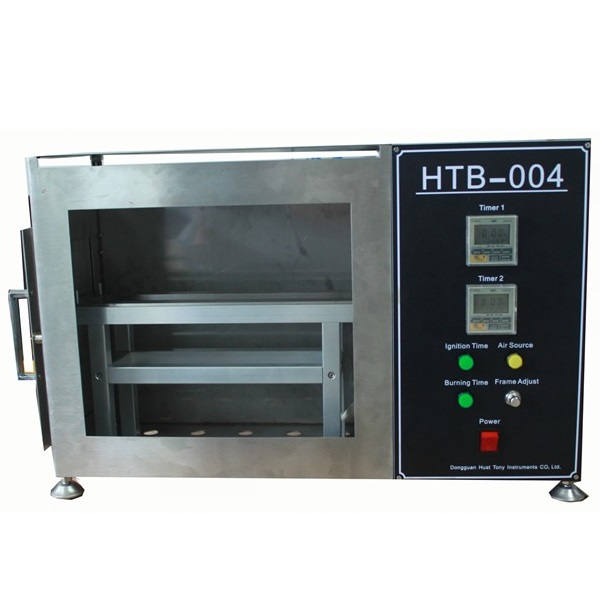

TONYHK HTB-004 Horizontal Flammability Tester

Technical parameters:

Test Chamber: 381x203x356mm, bottom gas vent diameter: 19mm*10

Sample fixture: U shape

Interior casing: 30mmx50mm

Sample: 356x100mm, thickness no more than 13mm

Samples: at least 5 pcs

Burner nozzle: inner diameter 9.5mm

Burner angle: 90°

Burn flame altitude: 38mm

Burning time: 15s

Marker line distance: 254mm

Burning gases: natural gas, town gas or butane

Size: 57x26x37cm

Weight: 28Kg

Power: 1∮ AC 220V 50Hz 3A

Standards: ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132
