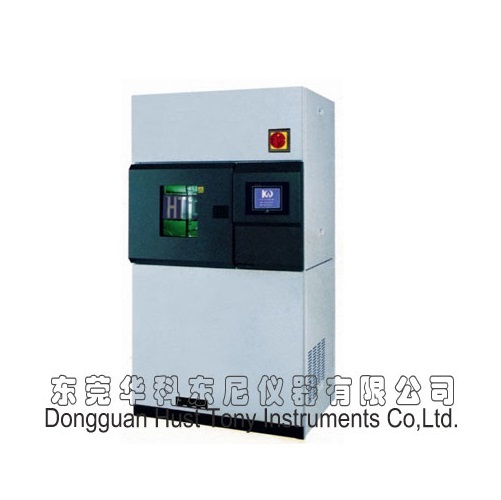

TONYHK HTE-002 氙弧试验箱 (50~1200W/m2)

Temperature range: RT+10°C~80°C

Humidity range: 50~90%RH

Black panel temperature: 63~100°C; ±3°C

Temperature fluctuation: ≤±0.5°C

Temperature uniformity: ≤±2.0°C

Glass window light filter: 3pcs

Light source: imported air-cooled lamp (USA Q-Panel)

Lamps: 4 (1 pcs for standby)

Rainfall duration: 0~9999min, continuous rainfall adjustable

Rainfall cycle: 0~240min, rainfall interval adjustable

Water spray cycle (water spray time/water no spray time): 18min/102min

Xenon arc lamp power: 1.8KW*3=5.4 kW

Heating power: 2kW

Humidity power: 0.75kW

Space between sample holder and lamp: 230~280mm

Wavelength: 290~800nm

Radiation strength:50~1200W/m2

Sunlight time: 1~999h, m, s, light cycle can be continuously adjustable.

Test chamber size: 50*80*50cm
