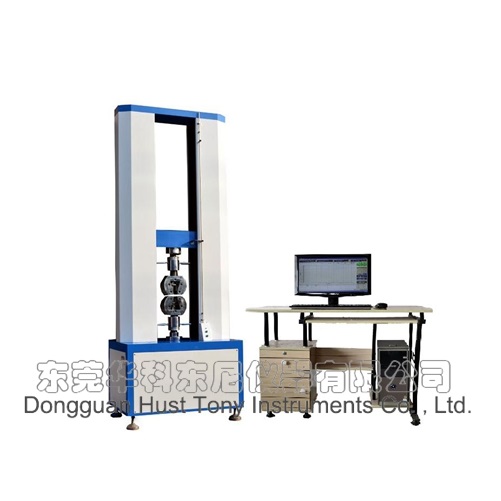

TONYHK HTP-004B 伺服万能试验机 (15000kg)

Maximum force capacity: 15000kg (150KN) load cell for push and pull, 0.4%~100%

Force measurement accuracy: within 0.5%

Test stroke: 800mm, effective test width: 400 mm, or specified per customer

Test force loading the measuring range: 0.4%-100%FS

Resolution: maximum test force of 1/200000

Test speed: 0.01 - 500mm/min. or specified per customer.

Displacement measurement accuracy: ±0.5% of indication

Test force control rate adjustment range: 0.05%-5% FS/S

Control accuracy: ± 0.5% when the control rate  ≥0.05% FS/S

Machine size: 1100*700*2100mm(L*W*H)

Dynamic system: servo motor + high precision ball screw

Power: 220V/50HZ, 4.4KW

Accessories: 1 no Load cell, standard grips, operation software, English manual books and Video

Net Weight: 520kg, Gross weight:600 kg (after wooden package)

Package of strong wooden box size: 118cm*80cm*230cm
