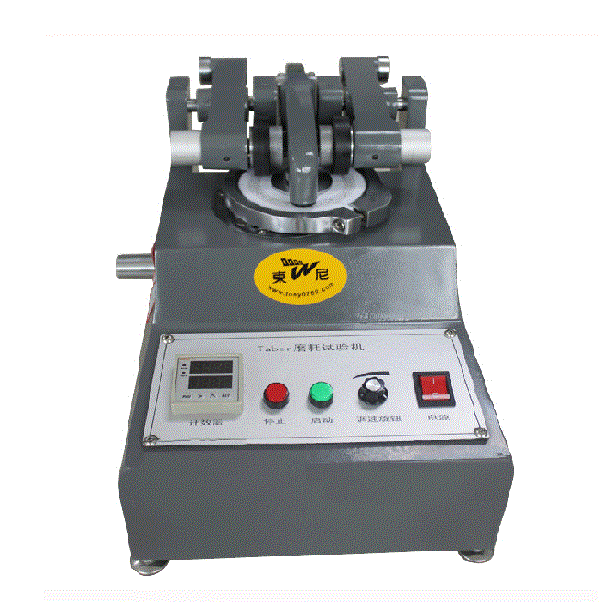

TONYHK HTX-005 Taber 耐磨试验机 (250g~1000g)

Specimen: outer diameter: φ110mm

                  inner diameter: φ6mm

Abrasion wheel: φ2" (MAX .45mm) 1/2"(W)

Abrasion wheel center distance: 63.5mm

Abrasion wheel specimens with disc center spacing: 37~38mm

Rotating speed: 60r/min

Loading: 250g, 500g, 750g, 1000g

Counter: LCD, 0~999999

Specimens and dust collection mouth distance: 3mm

Dimension: 530×320×300mm (L×W×H)

Weight: 18kg (no include vacuum cleaner)

Power: 1∮, AC220V, 50HZ

Standard:

DIN-53754,53799,53109,52347;

TAPPI-T476;

ASTM-D1044, D3884;

ISO 5470

Accessories:

Taber abrasion resistance tester 1 set;

H-18 grinding wheel 1pcs;

Power line 1 pcs
