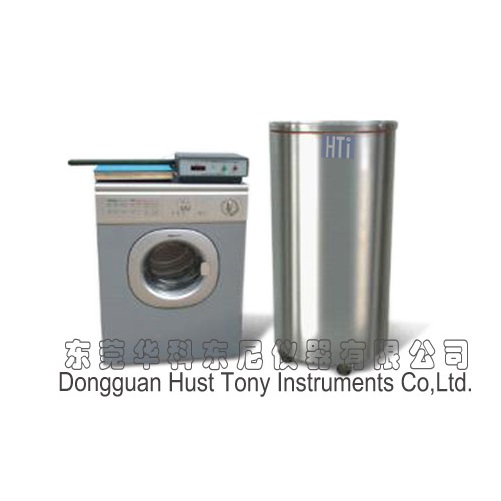

TONYHK HTY-007 Electric Density Tester for Triboelectrification (±0.001~2μC, 50r/min)

Test range of Charge:  ±0.001μC ~2μC (±1×10-9C~±2×10-6C)

Resolution: 0.001Μc

Faraday cylinder: Diameter: 500mm

                             Height: 1000mm

Roller inner diameter:  ≥460mm

Roller depth:  ≥350mm

Roller speed: 50r/min

Roller liner: Chinlon Standard Cloth

Air volume: 2m3/min

Roller inner temperature: 60±10°C

Power: AC220V±10%

Dimension: Faraday cylinder:  520×1150mm (D×H)

Roller friction machine: 600×560×840mm (L×W×H)
