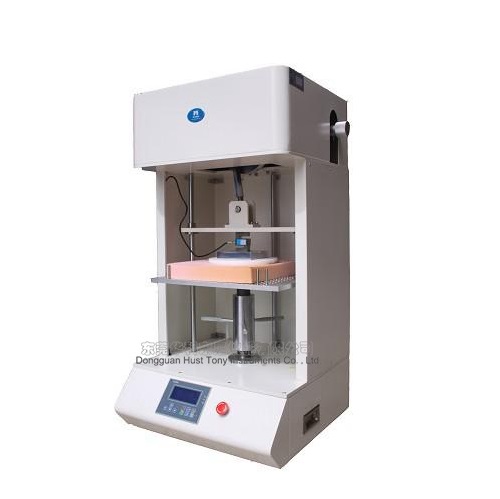

TONYHK TNJ-028 Foam Repeated Indentation Fatigue Tester (750 ± 20N)

Test speed: 70±5 r/min

Test number: 80 000 times

Pressure plate upside: diameter: Φ250mm

Rounded corners on the edge downside: R25mm

Platform downside: 420*420mm

Vent diameter: Φ6

Separation distance: 20mm

Stroke: 0~50mm

Sample load: 750±20N

Sample dimension: (380±20)mm*(380±20)mm*(50±2)mm

Count: 0~999 999 times

Size(WxDxH): 64x52x70cm

Weigh: ≈70Kg

Power: 1∮ AC 220V 50Hz 3A

Standards: GB/T 18941, GB/T 12825 and ISO 3385
