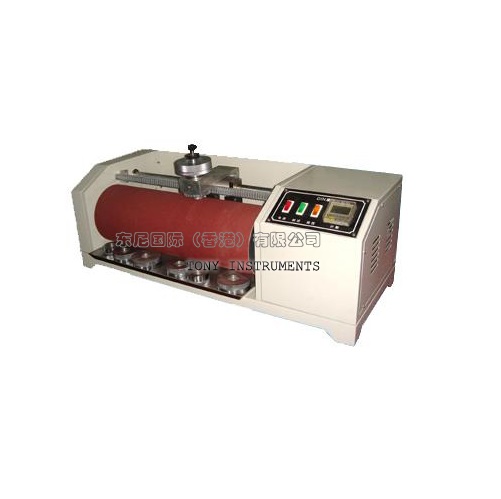

TONYHK TX-502 DIN 磨蚀试验器

Sample size: 16mm x thickness of 6-15mm

Sample moving speed: 4.2mm per revolution

Clamp Load weight: 2.5N

Load weight of weights: 2.5N,5N

Roller diameter: 150mm

Roller length: 460mm

Roller speed: 40rpm

Wear trip: 40m/20cm

Wear speed: 0.32m/sec

Inclination: 3 degrees vertical angle between specimen support shaft and wheel

Dimension: 70x30x30cm

Weight: 61kg

Power: 1∮, AC220V, 3A

Standards: DIN-53516, ISO -4649, GB/T9867
