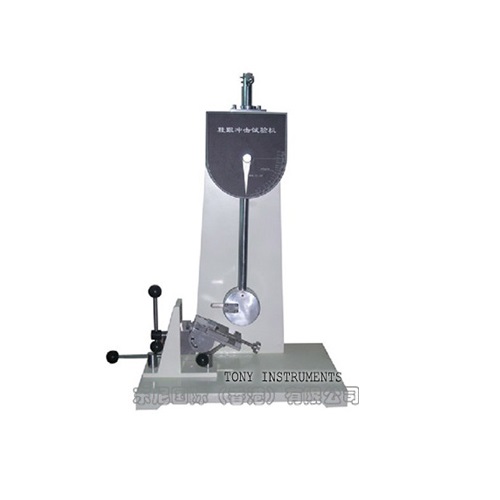

TONYHK TX-529 鞋跟冲击试验机 (0~25mm)

Capacity: 0~18.3J(13.5FT-LB) minimum indication

Swing arm: φ25mm

Energy of pendulum bob when swing arm in horizontal: 17.3N-m(12.7ft-lb)

Impact hammer: φ108mm, 49.2mm(D)

Distance between hammer circle center and axle center: 432mm

Impact blade: 25x6x35mm(W×D×L),3mm(R)

Specimen seat adjustable range: 0~25mm(H), angle 1~45°

Volume: 63x40x105cm

Weight: 101kg

Standard: BS-5131
