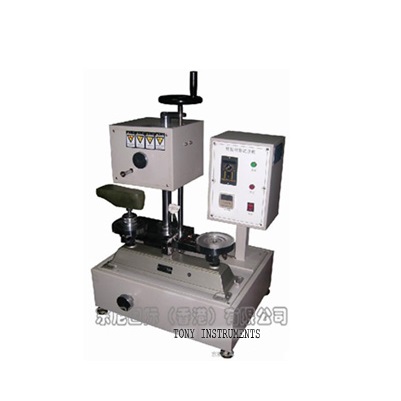

TONYHK TX-566 GB Shoes Abrasion Tester (0.1min)

Parameters:

Standard: GB/T3903.2-2008 Common wear test methods of footwear

Grinding wheel: φ20±0.1mm, bore diameter (6±0.02)mm

Test time: 20 min contiguous, self-clocking, accuracy 0.1min

Load between wheel and specimen: 4.9 N(can be adjusted within the 19.6N if special requirements)

Counter: LCD, 0~999.999

Rotation speed: common 191±5r/min, 50~300 r/min adjustable

Balance range: 5000g, accuracy 5g

Motor with speed adjustable: 3∮, 110W

Volume: 50x60x80cm

Weight: 62kg

Power: 1∮, AC2220V, 3A
