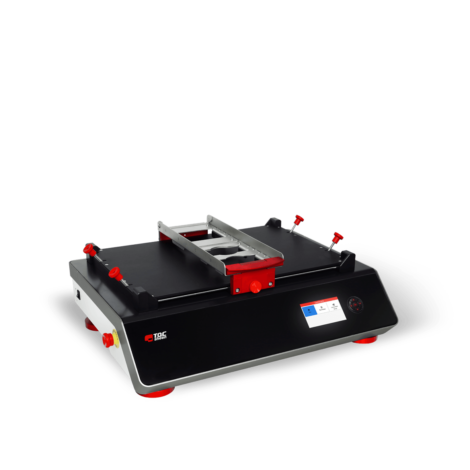

TQCSheen AB6000 涂层耐洗刷仪

Technical Data

Traverse speed: 1 - 60 cycles per minute

Traverse speed accuracy: + / - 1% of set speed

Stroke length: 20 - 300 mm / 0.39 - 11.81 in

Stroke length accuracy: + / - 0.01 mm

Pump flow rate: 0.0 - 3.0 ml per minute / 0.0 - 0.79 GPH

Max. panel width: 70 mm / 2.76 in

Max. panel length: 350 mm / 13.78 in

Max. panel height: 35 mm / 1.38 in

Dimensions and Weight

Depth: 490 mm / 19.3 in

Depth with pumps: 530 mm / 20.87 in

Width: 640 mm / 25.2 in

Height: 235 mm / 9.24 in

Mass: 30 - 35 kg / 66.14 - 77.16 lbs (depending on model)

Basic Unit

Power Supply: 24 VDC / 100 - 240 V / 50 - 60 Hz

Power consumption: max. 90 Watt

Display: 480 x 272 pixel TFT display

Control: 5-key navigation switch (Mouse Keyboard optional)

Menu languages: English, Spanish, Chinese, Polish, German, French, Italian, Japanese, Russian, Turkish


Scope of Supply

>> Standard supplied:

• 24V adapter + Power Cable

• Manual

>> Only supplied with AB6000:

• Scrub Abrasion and Washability Tester

• Tubing

• Fluid containers

Detail

Datasheet


Manual
