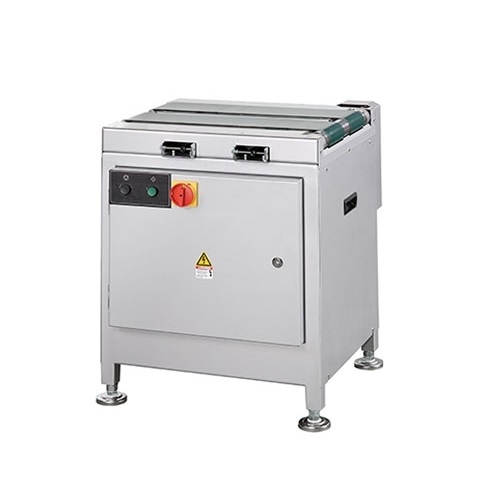

Transpak N-AC 储运机 (for Print Media)

Conveyor Speed: 10 - 60 M/minute

Bundle Size

        Width                     Length                  Height

max   450 mm      max   450 mm      max   400 mm

min    100 mm       min   120 mm       min       5 mm

Electrical Requirements: 220V, 380V, 400V, 415V 50/60Hz 3PH

Weight: 100 kg


Details

Datasheet


N-AC is an accumulating conveyor designed for bundle buffering.

It can be easily connected with upstream stacker and downstream strapper for bundle accumulating and transporting.

Features

Photo-eye control

Siemens PLC

Adjustable table height between 800 mm and 900 mm

Variable conveyor speed

Up and down stream interlock with complete plug connection
