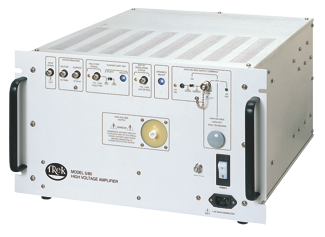

Trek 5 / 80-H 高压放大器（200 / 230V）

Line Voltage: 200/230V

Output Voltage Range: 0 to ±5 kV DC or peak AC

Output Current Range: 0 to ±80 mA DC or peak AC

Input Voltage Range: 0 to ±5 V DC or peak AC

Input Impedance: 10 kΩ, nominal

DC Voltage Gain: 1000 V/V

DC Voltage Gain Accuracy: Better than 0.1% of full scale

Offset Voltage: Less than ±2 V

Output Noise: Less than 1.0 V rms*

Slew Rate (10% to 90%: Greater than 1000 V/µs

Settling Time: Less than 50 µs for a 0 to 5 kV step

Large Signal Bandwidth (3% distortion): DC to greater than 50 kHz

Large Signal Bandwidth(-3dB):DC to greater than 60 kHz

Small Signal Bandwidth (-3dB): DC to greater than 75 kHz

Dimensions: 279 mm H x 482 mm W x 654 mm D

Weight: 24 Kg
