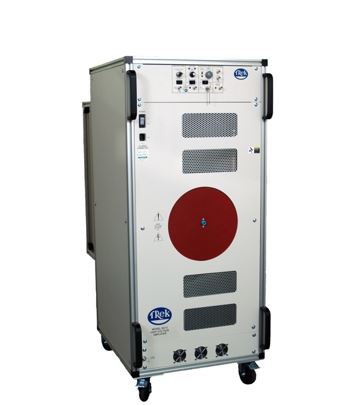

Trek 50 / 12-H 高压放大器(200 / 230V)

Line Voltage: 200/230V

Output Voltage Range: 0 to ±50 kV DC or peak AC

Output Current Range: 0 to ±12 mA DC or peak AC

Input Voltage Range: 0 to ±10 V DC or peak AC

Input Impedance: 25 kΩ, nominal (inverting/differential option

50 kΩ nominal)

DC Voltage Gain: 5000 V/V

DC Voltage Gain Accuracy

Better than 0.1% of full scale

Offset Voltage: Less than ±5 V

Output Noise: Less than 10 V rms*

Slew Rate (10% to 90%, typical): Greater than 350 V/µs

Small Signal Bandwidth (-3dB): DC to greater than 20 kHz

Large Signal Bandwidth (2% distortion) :DC to greater than 1.4 kHz

Dimensions: 1473.5 mm H x 628.7 mm W 948.4 mm D

Weight: 125-136 kg
