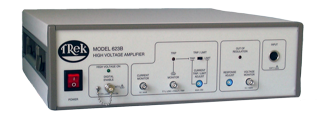

Trek 623B-H 高压放大器(200 / 230V)
制造商: TREK Model: 623B-H 来源: USA 保障: 12 Month - 报价要求
- 联系
Line Voltage: 200/230V
Output Voltage Range: 0 to ±2 kV DC or peak AC
Output Current Range: 0 to ±40 mA DC or peak AC
Input Voltage Range: 0 to ± 2 V DC or peak AC
Input Impedance: 25 kΩ, nominal
DC Voltage Gain: 1000 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±1 V
Output Noise: Less than 80 mV rms*
Slew Rate (10% to 90%): Greater than 300 V/µs
Settling Time: Less than 150 µs for a 0 to 2 kV step
Large Signal Bandwidth : DC to greater 10 kHz (1% Distortion)
Small Signal Bandwidth (-3dB): DC to greater than 40 kHz
Dimensions:134 mm H x 432 mm W x 439 mm D
Weight:13,2 Kg
