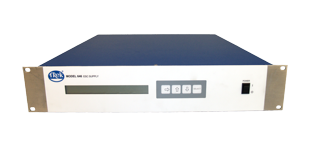

Trek 646 DC/DC电源/ 可变输出/ 机架式(±3kV)

- Output Phasing:

 Voltage A (Reference Phase) 0 to ±3 kV

 Voltage B (Phase B = [-1] x Phase A) 0 to ±3 kV

- Output Voltage Range: 0 to ±3 kV

- Output Current Range: 0 to ±6.5 mA DC with a peak capability of 10 mA

- Mechanical:

Dimensions: 88.1 mm H x 431.8 mm W x 531.9 mm D (3.47” H x 17” W x 20.9” D) 1U rack enclosure

Panel Width: 482.6 mm (19”)

Weight: 11 lbs (5.0 kg)

Connectors: 15-pin “D” ITT Canon used by remote device to control/monitor the unit, 9-pin “D” ITT Canon RS232,

3-Pin FCT “D” High-Voltage, standard type-A USB, Ethernet (optional) and Front Panel

Power ON/OFF: 2-position rocker switch

- Operating Conditions:

Temperature: 0°C to 35°C (32°F to 104°F)

Relative Humidity: To 85%, noncondensing

Altitude: To 2000 meters (6561.68 ft.)

- Electrical:

DC Input Receptacle: 2.0 mm locking DC jack; center contact is positive and shell is negative (receptacle mates with Switchcraft S761K plug)

Ground Receptacle: Ground stud

Power Requirements: 24 V DC, 2.0 A

- Supplied Accessories:

Operator Manual, SW: PN: 24013

USB Cable: PN: BA103

HV Connectors: PN: B8076R

DC Plug (Switchcraft S761K): PN: BA119R

Line Cord, Fuses: Selected per geographic destination

- Optional Accessories:

90-264 V AC to 24 V DC Power Adapter: PN: IK045
