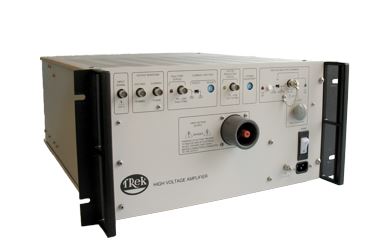

Trek P0621N 高压功率放大器


Output Voltage Range: 0 to -30 kV DC or peak AC
Output Current Range: 0 to ±20 mA DC or peak AC
Input Voltage Range: 0 to ±10 V DC or peak AC
Input Impedance: 25 kΩ, nominal (inverting/differential option
50 kΩ nominal)
DC Voltage Gain: 3000 V/V
DC Voltage Gain Accuracy
Better than 0.1% of full scale
Offset Voltage: Less than ±10 V
Output Noise: Less than 30 mV rms*
Slew Rate (10% to 90%, typical): Greater than 350 V/µs
Small Signal Bandwidth (-3dB): DC to greater than 25 kHz
Large Signal Bandwidth (1% distortion) :DC to greater than 3.5 kHz
Dimensions: 222 mm H x 432 mm W x 584 mm D
Weight: 24,9 kg
