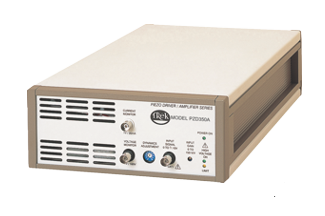

TREK PZD350A-1-L 高压功率放大器
制造商: TREK Model: PZD350A-1-L P/N: TK-12529L 保障: 12 Month - 联系
Line Voltage: 100/115V
Output Voltage Range: 0 to ±350 V DC or peak AC
Output Current Range:0 to ±200 mA
Input Voltage Range: 0 to ± 10 V DC or peak AC
Input Impedance: 90 kΩ, nominal
DC Voltage Gain: 0 to 150 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than ±500 mV
Output Noise: Less than 150 mV
Slew Rate (10% to 90%): Greater than 50 V/µs
Large Signal Bandwidth : DC to greater 8 kHz (1%distortion)
Small Signal Bandwidth (-3dB): DC to greater than 30 kHz
Dimensions: 110 mm H x 220 mm W x 445 mm D
Weight:5 Kg
Line Voltage: 90 to 127 V AC at 48 to 63 Hz
