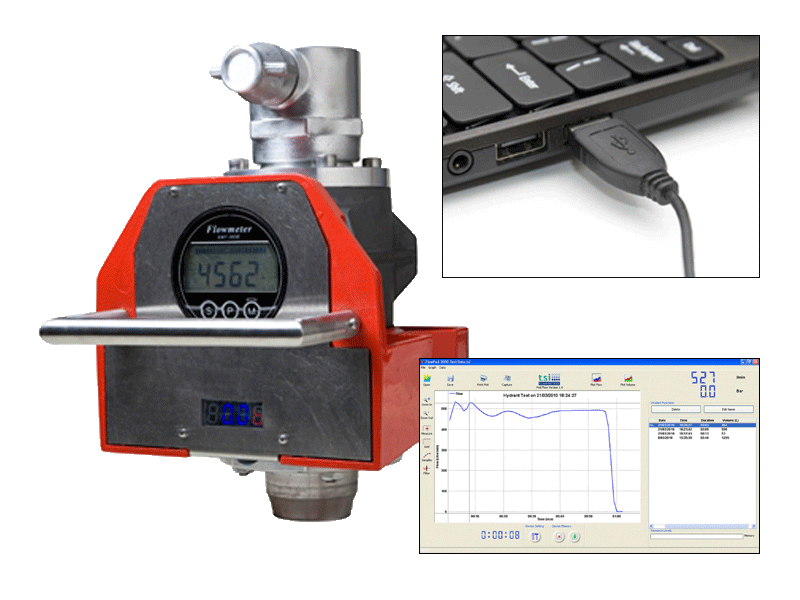

TSI流量计Flowmaster 250 DL水流量计(34-2007)

  • 制造商: TSI Flowmeters
    Model: Flowmaster 250 DL
    来源: Ireland
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: TSI Flowmeter

Model: Flowmaster 250 DL

Part No.: 34-2005

Origin: Ireland

Warranty: 12 months



FLOWMETER


Type: Electromagnetic

Operating Range: 30 to 3,000 lpm, can be extended to 5,000 lpm

Accuracy: 30 to 750 lpm: ±15 lpm > 750 lpm: ± 2%

Power Supply: Internal battery 12V DC, 2.2 Ah

Up to 10 hours continuous operation External charging device included as standard. Mains charger is supplied with either UK, euro or USA style plug.


Operating temperature: -10 to +50 ºC

Weight: 12.5kg

Dimensions: 210 (H) x 240 (W) x 390 (L) mm

Housing: Solid and corrosion resistant LM25 aluminium

Colour: Red RAL 3020/natural aluminium


PRESSURE MEASUREMENT


Sensor: Piezoresistive pressure transducer

Range: 0-25bar in 0.1bar increments

Accuracy: ± 1%

Readout: High brightness LED

Readings in BAR or PSI


DATA LOGGER

Record 12 hours of flow and pressure data at 1 second recording interval

Upload data to laptop by USB

Auto logging feature whereby data logging starts and stops automatically according to flow rate

LED indication of logging in progress

Can also log directly to PC using USB cable supplied

PC SOFTWARE

FMSv4.5 software for file management and report preparation is supplied.
