TSI 9307 型油滴发生器
制造商: TSI Model: 9307 - 报价要求
- 联系

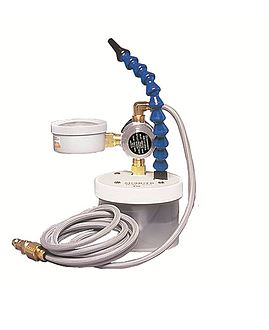

TSI 9307 Oil Droplet Generator
Supply Air Pressure
Minimum 170 kPa (25
PSI)
Maximum 2720 kPa (400 PSI)
Supply Air
Temperature
Normal Operation 20°C
(70°F)
Maximum 65°C (150°F)
Inlet Air (operating)
Pressure
Normal Operation 170
kPa (25 PSI)
Maximum 550 kPa (80 PSI)
Maximum Back Pressure
10 kPa (1.5 PSI)
Air Supply Line
Length 1.2 m (4 ft)
Connector Quick-coupler
Type Parker 1/4 in. H2C Male
Aerosol Flow Rate
9307 30 l/min (normal
operation)
9307-6 1000 l/min (normal operation)
Mean Droplet Size
1 micron for olive
oil (typical)
Aerosol Outlet Pipe
(9307)
Outside Diameter 1.59
cm (0.625 in.)
Inside Diameter 0.95 cm (0.375 in.)
Aerosol Outlet Pipe
(9307-6)
Outside Diameter 2.5
cm (1 in.)
Inside Diameter 2.4 cm (0.93 in.)
Dimensions (Height x
Diameter)
9307 39.5 cm (15.5 in.)
x 15 cm (5.9 in.)*
9307-6 48 cm (18.9 in.) x 23 cm (9 in.)**
Weight
9307 3.9 kg (8.5 lb)
9307-6 13.2 kg (29 lb)
